Bellco Feeders - Custom Flex Feeders

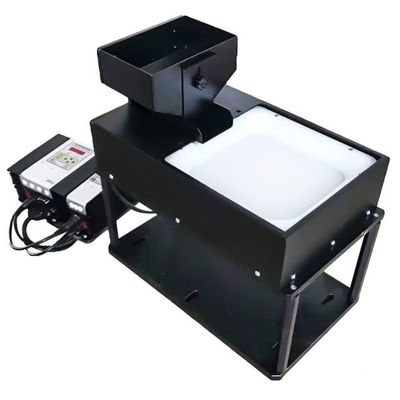

Bellco Feeders` flexible feeding solutions supply parts to an industrial vision-guided robot. With its backlit tray and three-axis vibration technology, our flex feeder provides an enhanced user experience. This technology efficiently moves components in various directions across the surface, ensuring their random scattering.
When the vision system notifies the flex feeder that there are not enough pickable parts on the surface, the hopper and flex feeder will turn on, gently shaking the components again to reorganize them.
We can configure bulk part hoppers that provide a continuous flow of material to the vibrating tray and minimize operator interaction.
- Quiet and gentle operation
- Programmable vibration sequences with 3-axis vibrating technology to move parts in all directions
- Highly adaptable and easily customized - possible to supply a complete range of parts
- Suitable for parts that have unique geometries
- Ideal for restoration projects
- With a compact design that optimizes the operator’s time and floor space
- Optional backlit pick area to pair with vision guided robotic applications
Bellco 110
Bellco Flex Feeder 110 technical drawing showcasing the design and dimensions of the part-feeding system
- Pick Area: 130 x 104 mm (~5 x 4 inches)
- Overall Dimensions: 370 x 169 mm (~14.5 x 6.6 inches)
- Maximum Load: 0.8 kg (~1.7 lbs.)
Bellco 210
Bellco Flex Feeder 210 product drawing showcasing design and dimensions of the part-feeding system
- Pick Area: 196 x 208 mm (~7.7 x 8 inches)
- Overall Dimensions: 470 x 270 mm (~18.15 x 10.6 inches)
- Maximum Load: 1.4 kg (~3 lbs.)
Bellco 310
Bellco Flex Feeder 310 product drawing showcasing design and dimensions of the part-feeding system
- Pick Area: 280 x 330 mm (~11 x 12.9 inches)
- Overall Dimensions: 700 x 400 mm (~27 x 16 inches)
- Maximum Load: 2.0 kg (~4.4 lbs.)
Bellco 510
Bellco Flex Feeder 510 product drawing showcasing design and dimensions of the part-feeding system
- Pick Area: 440 x 440 mm (~17.3 x 17.3 inches)
- Overall Dimensions: 750 x 580 mm (~29.5 x 22.8 inches)
- Maximum Load: 3.0 kg (~6.6 lbs.)
Flex Feed Controllers
All our flex feeders are equipped with digital variable frequency intelligent controllers, which are simple to operate and maintain. They operate by turning on and off to randomly distribute parts.
Illuminated Vibrating Tray
Our backlit vibrating tray effectively illuminates the parts to make them easily visible for an industrial vision system to locate and pick them.
Automatic Change Over
Our vibrating table can be programmed to run many different sequences. When you are ready to change to a new part, the changeover process is as simple as choosing a sequence on the HMI.
High Versatility
Our flex feeding systems are highly versatile and can feed almost every type of part, even the most complex geometries.
