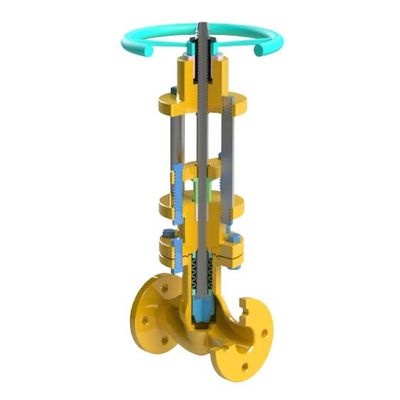

Freture - Model Euro-Chlor -Bellow Seal Globe Valve

SHARE

Euro-Chlor Bellow Seal Globe Valve- featuring ASME B 16.5 flanges, ASME B 16.10 face-to-face flanges, ACME screw thread stem, and grounded shaft. Multiple wall liquid-protected bellow built of Hastelloy C 276 with a minimum life cycle of 10,000 cycles, metal back seat, PTFE safety stuffing box packing, stainless steel spiral wound bonnet gasket with PTFE filler material and housed in a tongue and grooved flange. The valve was tested in accordance with EURO CHLOR GEST 89/140.

Most popular related searches
seal globe valve
bellow seal valve
globe valve
Hastelloy C 276
high-pressure valve
bonnet gasket
spiral wound gasket
spiral wound
valve testing
low carbon
  • End Connection: Flange (B16.5)
  • Size: 15 NB - 600 NB
  • Pressure Rating: #150 - #300
  • Temperature Range: -190° C to 350 ° C
  • MOC: LOW Temp. Carbon Steel / Stainless Steel / Alloy
  • Design Standard: EURO CHLOR GEST 89-140 / API 623
  • Cycle Life: 3000 - 5000 - 10000 Cycle
  • Face to Face: ASME B16.10 Rev 2009
  • Fire safe design: API 6FA
  • Testing:  EURO CHLOR GEST 89-140 / API 598 Rev 2009 / ISO 15848
  • Documents: BS/EN 10204-3.1 REV 2019
  1. Bellow Sealed Globe Valves used in Chlor-Alkali applications meet the stringent Euro Chlor and Chlorine Institute Specifications.
  2. No Bellow Torsion.
    The non-rotating stem prevent Bellow Torsion and guarantees high cycle life on all Bellow-Seal Valves.
  3. Bellow with long cycle life.
    Designed for High pressure/temperature applications and successfully tested as per MSS SP-117 / API 598.
  4. Minimal Torque.
    Because of the non-rotating stem, a central grease fitting is used to lubricate the stem nut and, for high-pressure valves, a stem thrust bearing.
  5. Stem / Gland Seals
    a. When open, the backseat (stem bevel) guards against line pressure.
    b. Gland Packing (Graphite / PTFE)
  6. Zero Maintenance Operating and maintenance costs are significantly decreased as a result of the longer service life.
  7. Hermetic Sealed (100% Emission Free).
    In most designs, Body-Bonnet welds create a hermetically sealed vessel. (As per requirement)
