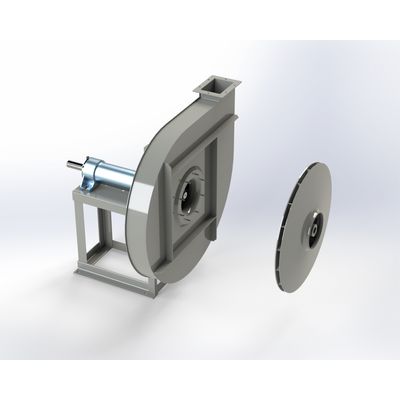

Euroventilatori - Model APC Series -Belt Driven High Pressure Centrifugal Fans
The fans of this series are particularly suitable for pneumatie conveyances, in cement factories, in the air feeding of the cupolas, in foundries and in oil burners, in mills, in “pasta” factories, in chemical, metallurgical and iron industries where small capacities with medium and high pressures are required.
Most popular related searches
- Use: suction of clean or extremely dusty air.
- Temperature: 90°C without cooling fan and 350°C with cooling fan; a small heat stopping fan is splined to the shaft between support and scroll; the fan is painted with a special aluminium varnish suitable for high temperatures.
- Air flow: 2-10m3/min
- Inlet pressure: 178-248kg/m2
- Outlet pressure: 185-252kg/m2
- Engine installed: N/A-N/Apoles
- Installed power: N/AKW
- Rotation speed: 2770round/min
- Limit speed: 4550round/min
- Fluid type: Clean, Dusty
- Inlet flange: ?145mm
- Outlet flange: 90x63mm
- Weight without engine: 30Kg
- GD2: 0.3Kgm2
General notes:
The fan is revolvable
