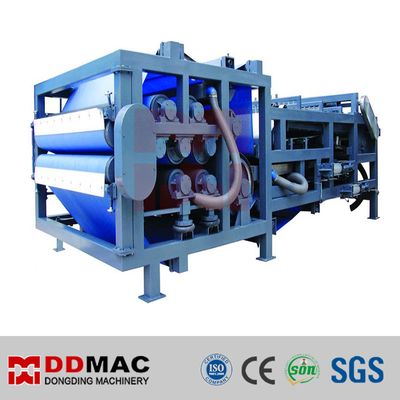

DONGDING - Model DD -Belt Press
The belt press (also called a belt press filter ) is an industrial machine, used for solid/liquid separation processes. Our belt press dehydrator is suitable for kinds of brewers spent grains, coco peat, coconut fiber, cassava residue, Bean Dregs, soybean residue, potato sludge, kitchen waste, sludge dewatering, etc.The raw material, passing through the distributor, is pre-pressed and dehydrated in the wedge area, and then further squeezed and dehydrated in the large area low pressure drainage area composed of porous drainage rollers. Then, the raw material with a certain degree of dryness is pressed by three sets of high-intensity squeezing, i.e. roller I, roller II and roller III. Then the raw material with extremely low water content is pressed and dehydrated again by the mesh belt at the discharge port. Finally the dry filter cake is discharged. It basically meets the requirements of major varieties for moisture content, and the entire process is subject to extrusion and shear forces.
1. Low power consumption and large processing capacity;
2. Simple operation and management, easy to maintain.
3. Small size and large processing capacity.
4. High degree of automation and continuous production;
5. Low noise and long service life;
6. Few auxiliary equipment, economical and reliable, wide application.
