Bema A/S
Bema - Model 26161 -3 pcs. Archimedean Screws – Complete Installation
FromBema A/S

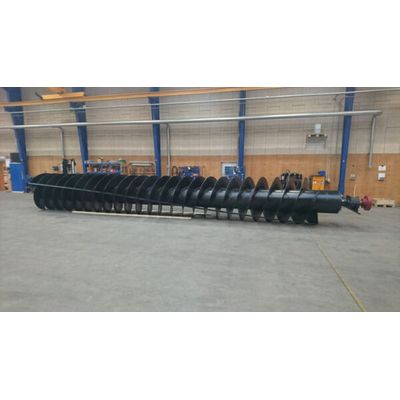

3 pcs. Archimedean screw rotors: Designed for sludge. Outer diameter: 1500 mm. Inner diameter: 711 mm. Pitch: 1200 mm. Tripple threaded. Flights are manufactured in 360° segments in 8 mm thickness. Manufactured in standard carbon steel. Coated with epoxy – Sigmashield 880.
Most popular related searches
waste handling product
industrial waste
lubricant system
waste handling
screw conveyor
industrial waste production
waste production
waste handling industry
waste industry
epoxy coating
Information of the application:
- Total length of screw rotor 11000 mm
- Placed in an angle of 35° with a lifting height of app. 6300 mm
- The application works with 3 identical screws placed in parallel
Complete installation:
BEMA has undertaken a complete installation process:
- Removal of the old warn out screw rotors
- Renovation of the bottom bearings
- Installation of new screw rotors
- Renovation of the concrete beneath the screw rotors
- Installation of new gear boxes
- Installation of a new lubricating system for the bottom bearins
The job has been performed in 10 weeks from the received order.
- Industry: Waste handling
- Product type: Screw rotor
- Transported material: Biomass, Bulk material
- Applied steel in product: Carbon steel
- Surface treatment: Carbon steel – painted, Carbon steel – primed
