Sentry Air Systems - Model SS-200-WS/SS-225-WS -Benchtop Fume Extractor

FromSentry Air Systems, Inc.

SHARE

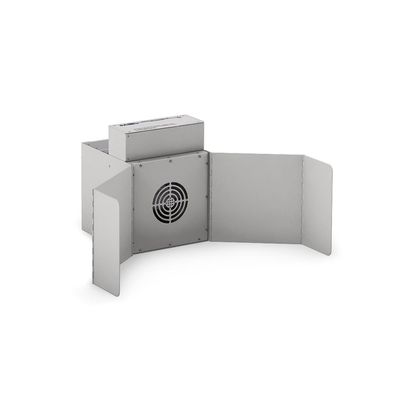

The Winged Sentry is a compact benchtop fume extractor that offers a unique and customized design. It features adjustable `wing flaps` to assist in directing fumes towards the unit`s inlet and into the filter chamber. The operator can place these wings in the most effective position for their particular application, or they can be positioned flat against the sides of the unit to conserve space.

Most popular related searches

benchtop fume extractor

compact fume extractor

Soldering
Capsule filling
Solvent and epoxy fume
Powder filling
R&D
Light grinding
Variety of applications involving chemical fumes and dust

Includes: infinitely adjustable “wing flaps”
Optional: variable speed controller (115V only) and clear acrylic lid
Quiet, reliable, low maintenance operation
Sturdy construction
Simple, quick “no tool” filter change
Long filter life

Base Unit Dimensions
- Length: 8.5”
- Width: 8”
- Height: 10.5” (includes control box)
Work Area Dimensions: 9” deep x 21.5” width
Cabinet Material: 16 ga. carbon steel
Weight: Approx. 12 lbs.
Air Volume (approximately)
- Pre-Filter + HEPA:
  - 200: up to 100 CFM
  - 225: up to 130 CFM
- Pre-Filter + 2.5# Carbon:
  - 200: up to 50 CFM
Electrical
- 200: 115/1/60, 0.3 amps; 220/1/50, 0.2 amps
- 225: 115/1/60, 0.46 amps
- 8’ grounded power cord with NEMA 5-15P plug
Sound Level (High at 3’ from inlet)
- 200: Approx. 58 dba
- 225: Approx. 64 dba
Patent #: 5,843,19

HEPA (up to 99.97% efficiency on particles down to 0.3 microns)
ASHRAE (up to 95% efficiency on particles down to 0.5 microns)
Activated Carbon
Specialty-Blended Filter Media (i.e. acid gas, mercury, aldehyde, and ammonia)
