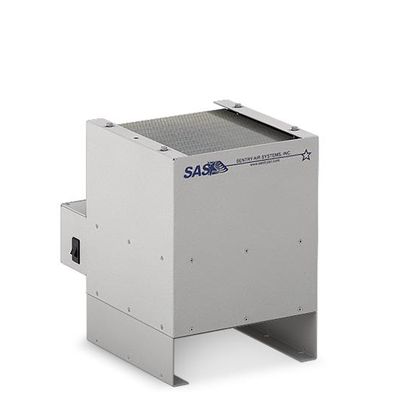

Sentry Air Systems - Model SS-200-TS/SS-225-TS -Benchtop Fume Extractor

FromSentry Air Systems, Inc.

SHARE

The Table Sentry is a compact fume extractor that is built specifically for stationary, benchtop operations where airborne fumes need to be captured and filtered at the work surface level. An optional adjustable height stand is available and is highly efficient for elevated operations such as solder pot applications. This system incorporates an energy-efficient fan and high-quality filtration media to capture and purify harmful particulates.

Most popular related searches

compact fume extractor

benchtop fume extractor

particulate filter

activated carbon

specialty filter media

activated carbon filter media

activated carbon filter

Soldering
Light grinding
Solvent and epoxy fumes
Particulate
Powder filling
Solder pot fumes
Variety of other applications involving chemical fumes and dust.

Highly portable and lightweight
Quiet, reliable, low maintenance operation
Sturdy construction
Simple, quick “no tool” filter change
Long filter life
Optional: variable speed controller and hour counter

Cabinet Dimensions
- Length: 10.5" (includes control box)
- Width: 8"
- Height: 10.75"
Weight: 12 lbs.
Cabinet Material: 16 ga. carbon steel
Air Volume (approximately)
- 95% ASHRAE:
  - 200: up to 100 CFM
  - 225: up to 130 CFM
- Pre-Filter + 2.5# Carbon:
  - 200: up to 50 CFM
Electrical:

200: 115/1/60, 0.3 amps; 220/1/50, 0.2 amps
225: 115/1/60, 0.46 amps
8’ grounded power cord with NEMA 5-15P plug

Sound Level (High at 3' from inlet)
- 200: Approx. 58 dba
- 225: Approx. 64 dba
Patented Design: U.S. PATENT #5,843,197

HEPA (up to 99.97% efficiency on particles down to 0.3 microns)
ASHRAE (up to 95% efficiency on particles down to 0.5 microns)
Activated Carbon
Specialty-Blended Filter Media (i.e. acid gas, mercury, aldehyde, and ammonia
