Sentry Air Systems - Model SS-200-WSL/SS-225-WSL -Benchtop Fume Extractor with Lid

FromSentry Air Systems, Inc.

SHARE

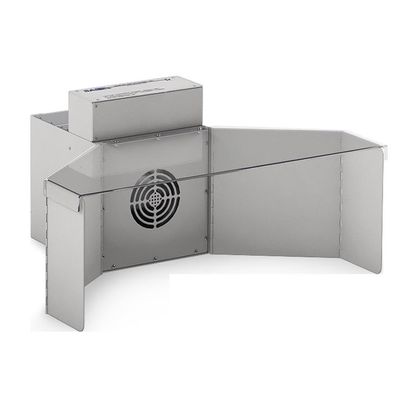

The Winged Sentry with Lid is a compact benchtop fume extractor which offers a unique and customized design that includes adjustable “wing flaps” and a clear acrylic hinged lid to assist in directing fumes into the unit’s inlet and filter chamber. These wings are adjustable according to the operator’s preference and the hinged lid provides a hood-like enclosure for added containment.

Most popular related searches

benchtop fume extractor

compact fume extractor

Soldering
Capsule filling
Solvent and epoxy fume
Powder filling
R&D
Light grinding
Variety of applications involving chemical fumes and dust

Includes: infinitely adjustable “wing flaps” and hinged clear acrylic lid
Optional: variable speed controller (115V only) and hour counter
Quiet, reliable, low-maintenance operation
Sturdy construction
Simple, quick “no tool” filter change
Long filter life

Base Unit Dimensions
- Length: 8.5”
- Width: 8”
- Height: 10.5” (includes control box)
Work Area Dimensions
- Depth: 9”
- Width: 21.5”
- Height: 8”
Cabinet Material: 16 Ga. carbon steel
Lid Material: 1/8” clear acrylic
Weight: Approx. 12 lbs.
Air Volume (approximately)
- 95% ASHRAE:
  - 200: up to 100 CFM
  - 225: up to 130 CFM
- Pre-Filter + 2.5# Carbon:
  - 200: up to 50 CFM
Electrical
- 200: 115/1/60, 0.3 amps; 220/1/50, 0.2 amps
- 225: 115/1/60, 0.46 amps
- 8’ grounded power cord with NEMA 5-15P plug
Sound Level (High at 3’ from inlet)
- 200: Approx. 56 dba
- 225: Approx. 64 db
Patent #: 5,843,197

HEPA (up to 99.97% efficiency on particles down to 0.3 microns)
ASHRAE (up to 95% efficiency on particles down to 0.5 microns)
Activated Carbon
Specialty-Blended Filter Media (i.e. acid gas, mercury, aldehyde, and ammonia)
