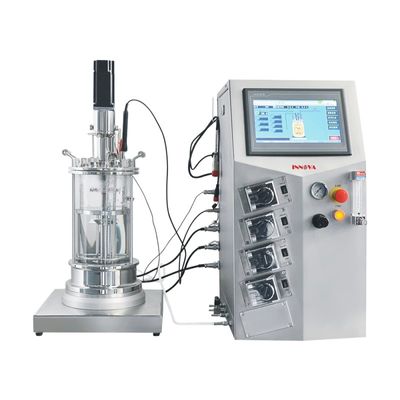

Innova - Model JG -Benchtop Microbial Bioreactor

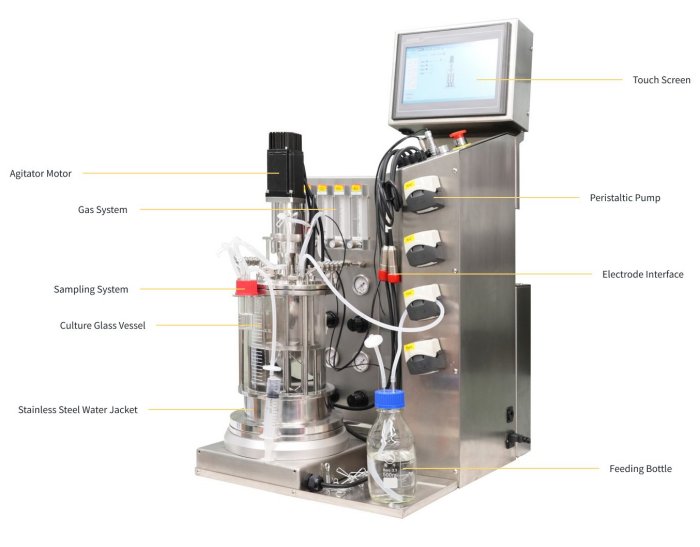

Vessel

• The volume is 0.2~50L, which can be customized freely.
• Round bottom design, more precise processing and better mixing.
• Single-wall glass vessel with an electric heating blanket or double-wall with jacketed water circulation can be selected.
• Equipped with a customized stirring system, mechanical or magnetic stirring, and different types of stirring paddles can be replaced.

Controller

• 10″ touch screen, easy to understand and use.
• Controller combines measurement and control hardware for excellent process control.
• Standard with 4 peristaltic pumps, the functions of each peristaltic pump can be switched, and external pumps can be configured.
• With an external chiller optional, you don`t have to worry about finding a suitable cooling water source for your bioreactor.

Control System

• With a mature, stable, universal Siemens PLC control system to realize automatic control.
• With the functions of real-time display, data recording, data analysis, output printing, password management, abnormal analysis, over limit alarm, etc.
• With a USB interface, data can be copied directly by USB.
• Running modes:

Manual control: You can open the valve or set the percentage of valve opening.
Automatic control: You can select continuous or PID control the switch.
Sequence control: The control of all parameters can be pre-set with at least 10 control sections.
Automatic segmentation remote control: PC control.
Related control: Rotating speed & dissolved oxygen, gasing & dissolved oxygen, feeding & pH, etc.

Volume: 0.2~50L (optional)
Load rate: 30%~70%
Vessel material: Borosilicate glass
Gassing: Standard: one air intake
Optional: multiple air intakes
Gas control: Standard: rotor flowmeter (manual)
Optional: mass flowmeter (automatic)
Sterilization: In autoclave
Basic control: Temperature, rotating speed, pH, DO, antifoam, feeds
Peristaltic pump: Standard 4 pcs
Stirring mode: Standard: mechanical stirring
Optional: magnetic stirring
