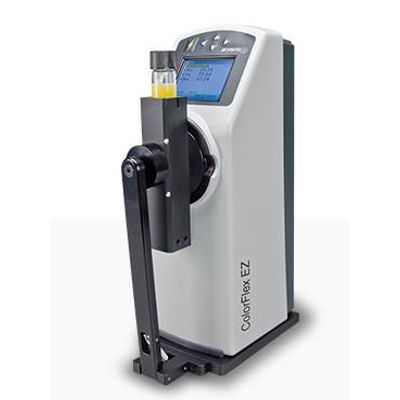

Hunter - Model ColorFlex EZ Citrus -Benchtop Spectrophotometer

Easy-to-use. Compact. And Increased Performance. ColorFlex EZ Citrus Spectrophotometer gives you unsurpassed confidence and trust in your outcomes.

The ColorFlex EZ Citrus measures Citrus Number, Citrus Redness and Citrus Yellowness. These indices were primarily intended to score orange juice concentrate, but in practice have also been used for grapefruit and lemon juices. In addition to the citrus values, the instrument can also measure in terms of the Hunter Lab scale as well as other widely used color scales. Thus the system can also be used to measure the reflected color of virtually any opaque or semi-opaque liquid.

The system comes complete with a sample tube holder, stand, clamp and a calibrated plastic O.J. standard. The instrument has a large, easy-to-read display and a sealed keypad. It requires very little bench space, and is very easy to use. In practice, the juice sample is poured into a test tube or capped tube. The tube is inserted into the instrument tube holder. By pressing one button on the instrument the measurement is made. CN (Citrus Number), CR (Citrus Redness) and CY (Citrus Yellowness) will simultaneously be displayed. The ColorFlex EZ Citrus can be connected to a printer if hard copy data is desired.

• Measurement Principle: Port up or Port forward dual-beam benchtop spectrophotometer/colorimeter
• Geometry: Directional annular 45° illumination / 0° viewing
• Spectrophotometer/Colorimeter: Sealed optics; 256-element diode array and a high resolution concave holographic grating
• Port Diameter/View Diameter: 31.8 mm (1.25 in) illuminated/ 25.4 mm (1 in) measured
• Specular Component: Excluded
• Spectral Range: 400 nm - 700 nm
• Spectral Resolution: < 3 nm
• Effective Bandwidth: 10 nm equivalent triangular
• Reporting Interval: 10 nm
• Photometric Range: 0 to 150 %
• Light Source: Pulsed Xenon Lamp
• Flashes per Measurement: 1 flash
• Lamp Life: > 1 million flashes
• Measurement Time: < 1 second from button push to measurement 2 seconds from button push to data display
• Minimum Interval Between Measurements: 3 seconds
• Standards Conformance: CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C
• Standards Traceability: Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259
