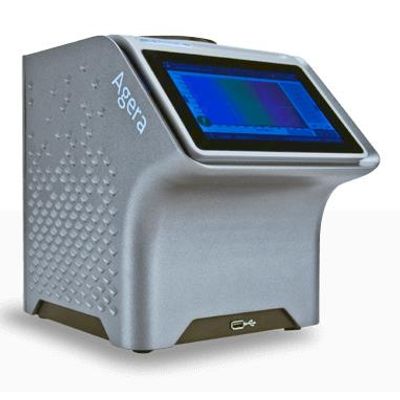

Hunter - Model Agera -Benchtop Spectrophotometer
Simultaneously measure color, quantify gloss, and store the image in one simple measurement—with a benchtop spectrophotometer or colorimeter that offers exceptional flexibility, ease of use, and unprecedented value.
With its 0º/45ºc circumferential geometry, 60-degree gloss meter, UV-controllable LED illumination and 5-megapixel camera, Agera makes positioning samples and measuring color as simple as a snapshot. A single measurement captures and stores the image while it analyzes color, fluorescence, and gloss. Even large samples are no problem with the largest fixed-point contact area of measurement in the industry.
Agera Spectrophotometer/Colorimeter completes the picture with an industrial touchscreen, robust quality control software, and state-of-the-art data management—plus sharing options so you can make the most of your investment.
Explore all the additional features and benefits below.
- Measurement Principle: Dual-beam Reflectance Spectrophotometer / Gloss meter
- Geometry: 0°/45°c (circumferential) ASTM E1164
- Measurement Method: Port up or Port forward
- Read Time: < 3 sec.
- Gloss Geometry: 60-degree (60º)
- Image Capture: High-resolution, D65 illuminated, 0°/45° image viewing, image capture and image recall
Port Opening and Area Measured:
NOTE:The Agera port plate openings are oversized by approximately 3.174mm (1/8” in) so that the illuminated and viewed areas of the sample are clear of the port edges. The measured area of the Agera is controlled by the lenses in the system and not controlled by the port plate opening size. This is an advantage over other instruments in that the port plate does affect the measurement.
Port Opening:
- Extra Large: 53.97 mm (2.125 in)
- Large: 28.57 mm (1.125 in)
- Medium: 17.47 mm (0.688 in)
Area Measured:
- Color: Extra Large - 50.8 mm (2 in), Large - 25.4 mm (1 in), Medium - 15.89 mm (5/8 in)
- Gloss: 8 mm (5/16 in)
