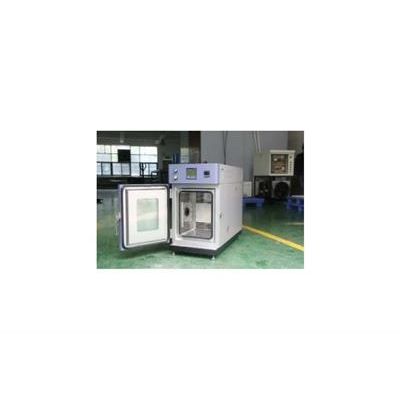

KOMEG - Model KMH-S Series -Benchtop Temperature and Humidity Test Chamber
chambers are suitable for testing electrical and electronic components and sensors, semiconductors, mainboards, liquid crystal displays and LED`s, drug stability testing, mechanical/military/aviation engineering, automobile, transportation/automobile supporting industry, chemical/petroleum industry, structural materials/plastic/textile industry, mold, tobacco, paint testing, metal-related industries testing, etc.
Most popular related searches
test chamber
temperature humidity chamber
humidity chamber
rigid polyurethane foam
environmental test chamber
stainless steel plate magnet
humidity test chamber
humidity control
chamber test
industrial testing

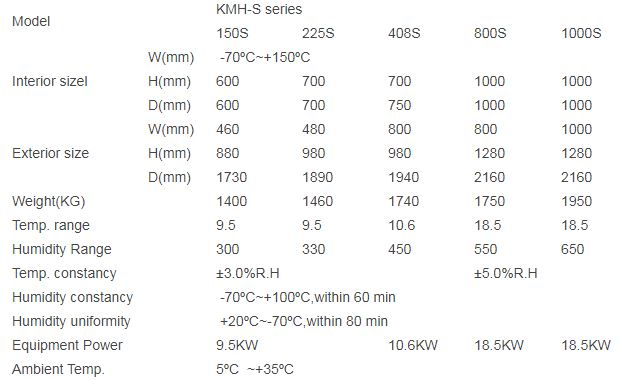

Technical parameters:
- Environmental Temperature and Humidity Chamber
- Secifications ( at +20°C room temp. Or+25°C water temp with empty load)
- Ambient Temp.: 5ºC ~+35ºC
- Standard accessories: Sight window*1, cable port(port 50mm)*1, shelves*2, chamber lamp*1, power cable *2m
- Safety device (standard): No fuse breaker, over pressure over heat and over current protection for compressor,
- Over temp. protect, over load protect of blower, dry heat protection
- Control System: Balanced Temperature & Humidity Control System
- Refrigeration system: Air Cooled (Water Cooled Type is option)
- Hermetic compressor,Cascsde Refrigeration
- CFC-Free refrigerant(HFC-507/HFC-23)
- Controller: Panel:7-inch LCD Touch panel, Chinese or English display selectable
- Operation model :Program or fix point running
- Memory capacity :120programs,1200steps,
- All repeat 999 cycles, part repeat 99 cycles
- Interior material: Stainless Steel Plate ( SUS 304 )
- Exterior material: Baked Painting Steel Or Stainless steel(SUS304)
- Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
- System: Balanced & Humidity Control System
- Wiring method: AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires
Note:
- We reserve the right to change specifications without prior notice
- Customized sizes and configurations available
