ALP Technology (T&M) Ltd

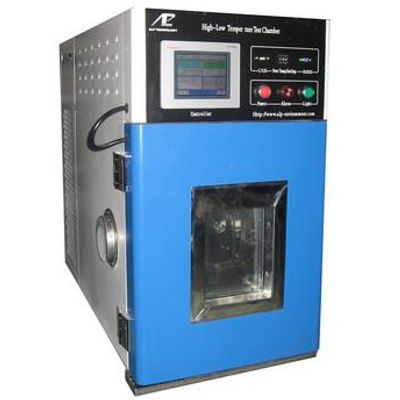

ALP - Benchtop Test Chamber
Used for reliability test and environmental test of dust-free material, electronic or electric product or component, military product. Conform to National Standard and Military Standard.
Most popular related searches
stainless steel plate magnet
benchtop test chamber
centrifugal fan
test chamber
environmental testing
air treatment system
benchtop chamber
refrigeration compressor
chamber test
centrifuge
Working environment
- Ambient temperature: 10?~35?
- Relative humidity: ≤85%RH
- Power source: AC220±10%V, 50--60Hz, single phase + GND
- Power: 2.5KW
Controller: Touch screen programmable controller
Running with constant value or program; Displays data of setting temp., actual temp., total running time, running time of segment, residual time of segment, heating condition, calendar time; Automatically choose working status of compressor according to test terms.
- Material: galvanized steel plate, and SUS304 stainless steel plate.
- Heat-insulating material: hard polyurethane foam and glass fiber, with enough thickness.
- Parts connection: weld of seamless tungsten electrode arc, with watertight treatment.
- Air adjustment system: forced circulation with centrifugal fan. heat with nichrome heater and cooled with compressor.
- Refrigeration system: world famous brand totally closed compressor, eco-friendly refrigerant R404A
