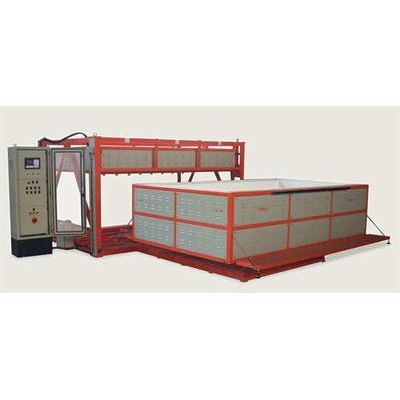

Vesta - Bending Kilns with Truck
Max. Operating Temperature : 700°C. Temperature Control : Multizone. Switching Device : SSR - Solid State Relay. Thermocouple : Type K (NiCr-Ni) inserted in ceramic tube. Thermal Insulation : High density ceramic fiber (multilayer). Heating Surface : Top.
Most popular related searches
digital temperature controller
ceramic fiber
type k thermocouple
damper
ceramic density
temperature switch
thermocouple
TEMPERATURE CONTROLLERS
- Advanced Temperature Programming Devices of either BENTRUP or PIXSYS can be supplied.
- Heating Elements : Resistance wire wound inside quartz tubes to ensure uniform radiation
- Cooling : Programmable motor driven dampers - TURBO COOLING - Forced convection by high pressure fan (optional)
- Truck Movement : Manual (standard) / Programmable (optional)
- Lid Opening : By mechanical elevating mechanism
- Frame Construction : Welded steel profiles
- Casing : Folded sheet metal
- Coating : Thermoset powder coat
- Standard Color : Beige (RAL 7032 W) + Orange (RAL 2004 W) - Other colors on request.
- Connection : Three Phase + Neutral + Earth
