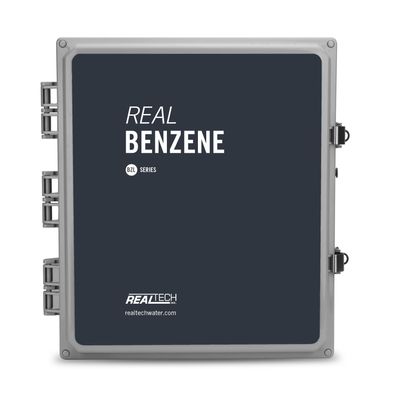

Real Tech - Model BZL Series -Benzene Sensor
Real Tech’s bypass Benzene sensor provides affordable real-time measurement of benzene in water or wastewater. The Benzene sensor provides superior measurement performance across multiple wavelengths of light using UV LEDs. Designed to meet the needs of many monitoring applications, the BZL series offers multiple flow cell designs and sensor path length selections to meet the desired measurement range.
- Affordable real-time benzene monitoring
- Multiple wavelength sensor uses UV LED technology for superior measurement performance
- Wastewater to high purity measurement ranges
- Operator friendly, low maintenance UV LED design
- Reagent free optical measurements
- Simple to install and operate
Real Tech’s bypass Benzene sensor is a cabinet style instrument installed directly on a wall, railing or system backboard. Sample is supplied to the sensor from a pressurized source or alternatively, from an open-channel using an accessory pumping/cleaning system. The sensor must be connected to a Real Tech controller for operation.

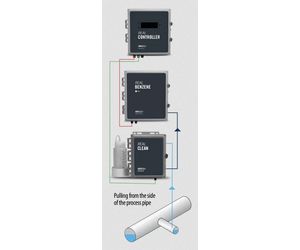

EXAMPLE CONFIGURATION
- Real Controller
For affordable, user friendly operation and control - Benzene Sensor
For real-time continuous benzene measurement - Real Clean System
For low maintenance automatic cleaning
Multiple sensors can be added to Real Tech’s controllers to expand water quality monitoring capabilities.
Simple to install, easy to operate, no reagents and no waiting for lab results.
Characteristic: Technical Data
- Path Lengths: 1 mm, 2 mm, 4 mm, 8 mm, 25 mm, 50 mm, 100 mm, 150 mm
- Parameters: Benzene
- Range : Depends on model selected. Refer to range chart
- Units: mg/L, ppm, µg/L
- Sampling Time: 30 seconds
- Calibration: Factory calibrated. Field adjustment of calibration is possible.
- Cleaning: In-situ cleaning makes cleaning quick and easy. Automatic chemical cleaning is optional.
- Self-Diagnostic: Detection and diagnosis of internal system fault
- Alarms: Dry contact terminals allow operator configurable alarms for:
- high and low set points, low lamp output, leak detect, system fault, etc.
- Humidity Control: Humidity sensor with large regeneratable desiccant system
- Wavelengths: Multiple wavelengths
- Light Source: UV LED
- Flow Rate: 300 - 1000 mL/min
- Pressure Rating: 20 PSI maximum
- Fluid Connections: 1/4" OD tube push-in fittings
- Electrical/Comm.: From controller
- Storage Temp: -20 to 60°C (-4 to 140°F)
- Operating Temp: 0 to 45°C (32 to 113°F)
- Enclosure: NEMA 4X, wall mountable
- Weight: 22 lb (2000 series) or 24 lb (4000 series)
- Dimensions: 17"H x 14.25"W x 7.5"D (2000 series) or 17.75"H x 15.5"W x 6.75"D (4000 series)
- Warranty: 2-year limited warranty (Extended care packages available)
* Technical Specifications are subject to change without notice.
