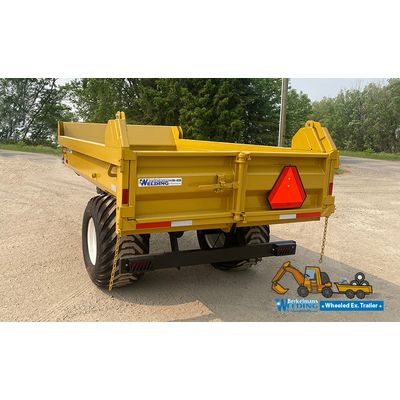

Berkelmans Welding - Model 6 Ton -Wheeled Excavator Trailer
Introducing our 6 Ton Wheeled Ex Trailer: Unleash the Power of Precision and Performance in Construction! Are you ready to elevate your construction game to new heights? Berkelmans Welding & Manufacturing proudly presents the 6 Ton Wheeled Ex Trailer – the ultimate solution for hauling heavy loads on any off-road terrain. Crafted with precision in Canada, this custom-made trailer is designed to seamlessly integrate with your excavator, ensuring a powerhouse combination for your construction needs. Robust 6-Ton Capacity: Tackle the toughest jobs with confidence. Our Wheeled Ex Trailer boasts a robust 6-ton capacity, providing the strength and durability needed to handle heavy-duty loads effortlessly.
Most popular related searches
- 12000 lb load capacity
- 7000 lb drop leg trailer jack
- 12 ft headroom required
- Molded steel floor bent as one pan
- AR 400 hardened and wear resistant 3/16” floor and sides.
- Front puncture proof 5/16” plate rolled to allow bucket to scoop max loads out of trailer.
- 15 feet total length, 80” outside width, Inside measurement.
- 72” wide x 10 feet x 19” deep without board, 27” deep with the board extension. 5 ft 7” height.
- Total weight 2900 lbs
- 3” x 5” x .188 tube main frame.
- 8000lb per spindle load rating
- 500/60/17 x 18 ply tires
- 400/60/15.5 x 14 ply optional
- Hydraulic surge brakes optional
- 4” x 30” two way hydraulic cylinder
- 50 degree dump angle
- Barn door and dump style tailgate with auto release tailgate latch
- Taillights
- Automotive grade metal treatment and primer, topcoat with high quality alkyd. (Test results show that this metal treatment and primer superior to powder coat in scratch and rust resistance)
- Special thanks to @lsearthworx for the demo video
- Trailer Weight: 2900 lbs
- Capacity: 12000 lbs
- Dump Angle: 50 degree
- Dimensions:
- 15 feet total length
- 80” outside width
- Inside measurement.
- Width Outside Box
- 72” wide x 10 feet x 19”
- deep without board
- 27” deep with the board
- extension
- 5 ft 7” height.
- Tires
- 500/60/17 x 18 ply tires
- optional 400/60/15.5
- x 14 ply
- Colour: your choice of colour
- Headroom Required: Needs 12 ft to dump
- Drop Leg Jack: 7000 lb
- Spindle and hub load rating: 8000 lb
