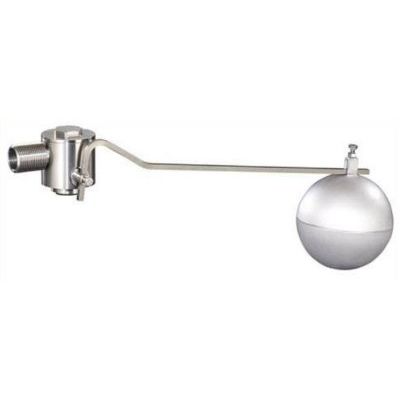

BerlutoModel SV 45 -Stainless Steel Float Valve

SHARE

Max. inlet pressure 10 bar. Nominal size DN 10, DN 15 and DN 20. kvs-value 0,2 to 0,4 m3/h. Max. media temperature 180 °C. Body, cap and float arm of stainless steel. FKM seals. External thread connection ISO 228. Valve seat interchangeable. Floats of PE or stainless steel (optional).

Most popular related searches

Filling of small storage tanks and level regulation of the same (e.g. flushing cistens, poultry troughs, humidifiers, etc.). The desired level can be set accurately by sliding the float on the float arm. Suitable for agressive water, other agrassive liquids, compressed air and neutral gases
