Bestn - Model CMS220 -High Efficiency Carbon Molecular Sieve

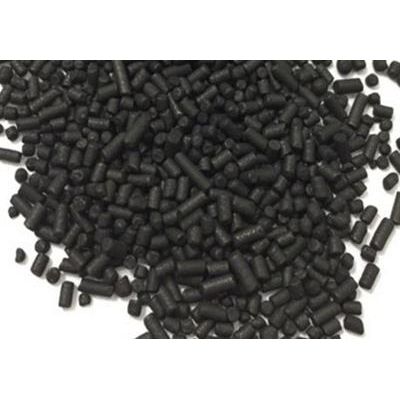

Carobon moleculr sieve takes the appearance of cylindrical black solid, contains countless 4 angstrom fine pores. It can be used to separate air into nitrogen and oxygen. In industry, CMS can concentrate nitrogen from air with PSA systems. Our CMS products have the character of large nitrogen yield capacity; high nitrogen recovery. It can meet the requirement of all types of PSA nitrogen systems. The carbon molecular sieve is widely applied in petroleum chemical industry, the heat treatment of metal, the electronic manufacture and food preservation industries.
Nitrogen generation by Pressure Swing Adsorption (PSA) process is a technology used to separate nitrogen from a mixture of gases under pressure according to the special selective adsorption characteristics of the Carbon Molecular Sieves (CMS).
The Carbon molecular sieve is a material containing tiny pores of a precise and uniform size that is used as an adsorbent for gases. When the pressure is high enough, the oxygen molecules, which pass through the pores of CMS much faster than the nitrogen molecules, are adsorbed, while the coming out nitrogen molecules will be enriched in gas phase. The enriched oxygen air, adsorbed by the CMS, will be released by reducing the pressure. Then the CMS is regenerated and ready for another cycle of producing nitrogen enriched air.
- Appearance:Black, extruded(pellet)
- Diameter: 1.3mm:1.6mm or customized
- Crushing Strength: 40N/P min
- Dust level: 100PPM Max.
- Package: 20kg or 40 kg plastic drum
- Switch cycle: 60S
