Sapphire Inspection - Model G20 -Bestselling X-ray Inspection System
Sapphire Inspection Systems offers a variety of x-ray inspection solutions designed to improve product quality and safety during the production process. The company provides machines that can detect contaminants such as metal, bone, stone, glass, and certain types of plastic in different types of packaging including bulk-flow, glass jars, metal containers, and large boxed items. The product lineup includes the A-Series for budget-friendly, compact inspection, the G20 for a versatile application with loose and packaged items, and advanced models such as the G120 OS FISH for high-resolution fish bone detection and the G120 VISUM for dual energy x-ray inspection in poultry. The company also offers bespoke x-ray inspection systems tailored to meet unique requirements. Suitable for various industries including food, medical, and pharmaceutical, the machines feature robust imaging technologies that ensure reliable contaminant detection.

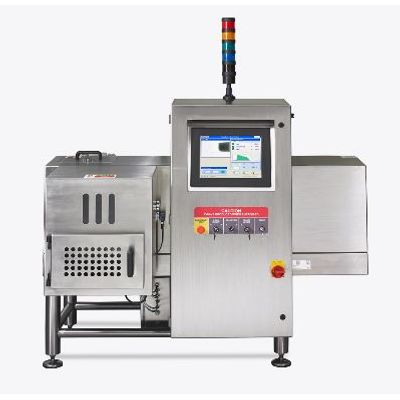

Bestselling, versatile x-ray system to inspect loose and packaged items with advanced algorithms.
The G20 is our bestselling x-ray system due to its versatility and range of options for customisation. The G20 is compliant with BRC, Tesco, and M&S standards.
This conveyor x-ray inspection system can be configured for a wide range of products including virtually any discrete packaged item and continuous bulk product flows.
The G20 combines advanced linear array technology with 100’s of sophisticated inspection algorithms, resulting in superior contaminant identification. In addition, the system can improve product quality through inspection of fill volume, confirmation of count and mass, and checking for damaged or missing items. You can set your own quality limits on our easy-to-use software, to whatever level is acceptable to your business.
A number of customisation options are available with the G20, including our innovative seal inspection function. We also offer bespoke x-ray inspection solutions.
- Ready meals
- Packaged foods such as pasta, rice, flour, biscuits, chocolates etc..
- Loose, bulk-flow foods
- Pet Foods
- Doughnuts (fill check)
- Cosmetics and toiletries
Customise the G20 inspection system with a range of options:
- Seal verification option
- Add single or double reject bins
- Choose from a range of reject systems
- Option to add an integrated check-weigher
- Multi-lane option
- Technology: Computer-controlled low energy technology
- Video display: 15″ colour touchscreen with real-time images and diagnostics
- X-ray generator: Various specifications from 40kV to 80kV
- Calibration Self-calibrating during normal operation
- Detection limit 0.2-1.2mm stainless steel is typical, depending on the product x-rayed
- Inspection rate: Up to 400 packs/minute
- Power requirements: 110 VAC or 200-240 VAC at 500VA
- Conveyor Speed: 0-100m/min computer controlled
- Ingress Protection: IP65 rated design
