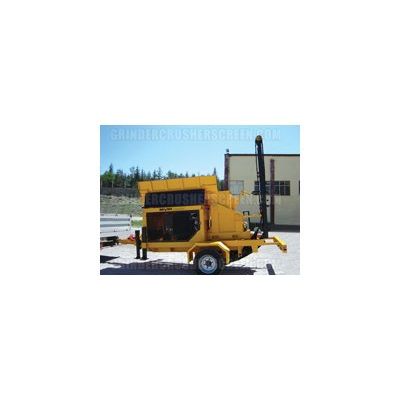

Beyer - Model 0535-R -Jaw Crusher
The 0535-R is a recycling jaw crusher made to handle concrete, concrete block, brick, and soft rock. Engine: NONE (75HP Hatz Tier 4 diesel with Self-Contained model). Approx Hrs on Frame: 0. Approx Hrs on Engine: 0. F.O.B.: Southeast USA - HB.
Most popular related searches
- Length: 15`-9" (for transport)
- Width: 5`-9"
- Height: 8` (conveyor up) or 9`-3" (with hopper plate)
- Load Height: 7`-3"
- Weight: Approx. 10,500 lbs (11,900 lbs for self-contained)
- Generator Requiements: 40kW, 1800rpm
- Electrical Requirements: 480 volt, 3-Phase, 60 Hz. Approx.
Vibro-Feedhopper: 1 yd, 1`-7" x 7`-10" dual hydraulic
Jaw Crusher: 19-5/8" x 13-3/4", adjustable 1" to 4", 22kW electric drive
Jaw Plate Surface Area: 540 sq.in.
Capacity (Approx): 15-30 TPH
Discharge Height: 6`-2"
Control cabinet with all equipment to operate machine, single-axel chassis with electric brakes, towing eye, and tail-lights, collapsible belt conveyor.
Optional Self-Contained Model: Includes on-board 25HP HATZ diesel
