BHL - Model 147'. x 1,300,000 LBS -Hook Load Mast and Substructure

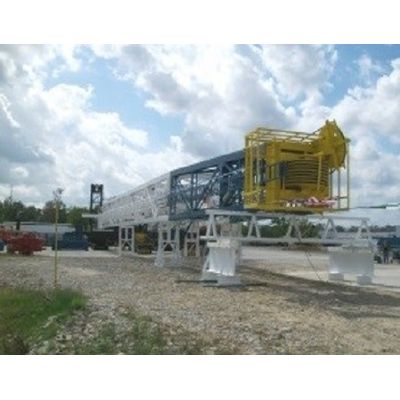

Brand New Self-Elevating Mast complete with 147’ clear height, 1,300,000 lbs. static hook load capacity, strung on 14 lines with 25’ base, ladders and crown assembly. The setback substructure is also raised together with the mast.
The crown assembly is supplied complete with a main cluster consisting of seven (7) sheaves, a fastline sheave each grooved for 1” wireline and arranged to accommodate a seven (7) sheave traveling block, handrails, bumper blocks; padeyes for block suspension line, tugger sheaves and top drive
The racking board is designed with a racking capacity of 25,000 of 5 drill pipe and ten (10) stands of 10” Drill Collars. The racking board is complete with an adjustable diving board, finger covers for the driller’s side fingers, 84” handrails, racking board frame and a ladder landing platform with handrails.
Two (2) tong counterweights complete with buckets, guides, blocks and wirelines are included. Padeyes are mounted in the mast intermediate section.
Two (2) Tugger sheave units grooved for 9/16” diameter wireline.
The mast contains all the necessary drive pins and bolts for assembly.
- Belly board
- Mast assembly stands
- Mast headache rack
- Mast is API 4F, monogrammed and certified to the latest 4F Edition.
