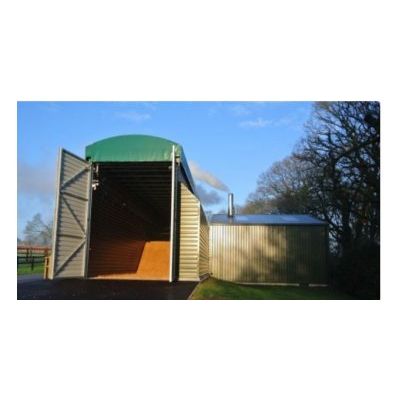

BHSL - Toploader for Woodchip Bunkers

Carriage Dimensions: 1074mm (H) X 3450 (L) X 4600mm – 5100mm (W). Toploader Weights: See “Weights”. Motors Manufacture: Nord. Motors Power Rating: Transverse Motor 4.0 Kw. Belt lifting Motor 2.2Kw. Motor Control: Variable speed Controllers. Sensors: IFM & Schneider. PLC: Allen Bradley. Throughput: 3750Kg/Hour (Based on woodchip with 275kg/m³ Density). No. of Cycles/Hour: 15 Cycles based on a 25 Meter Bunker. Toploader Operating Speeds: Carriage speed 0.3M/second. Belt Lifting Speed 0.4M/second. Toploader Steel Profile: See “Profile”. Toploader Finish: Galvanised.
