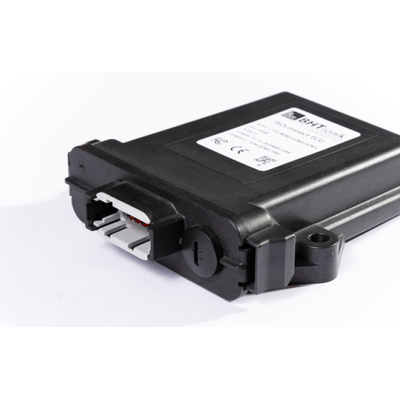

BHTronik ISOconnect - Model ISOBUS -Telemetry Module
The ISOconnectECU is a highly versatile telemetry module designed for seamless integration with various machines, mobile devices, and cloud services. It features multiple interfaces and is fully programmable to accommodate both standard and OEM-specific applications, making it an adaptable solution for different operational needs. This module supports ISOBUS functions like Task Controller and Data Logger which can be factory-installed upon request. It includes a customizable WLAN module for data interfacing with customer applications and a GSM/LTE module for cloud connectivity, complete with an exchangeable SIM card. The internal and external GNSS capabilities, alongside up to four CAN interfaces, extend its application versatility. For enhanced security, it utilizes a hardware key memory to safeguard customer applications and cloud connections. The ISOconnectECU can be tailored to specific customer requirements, including functionality, design, and branding, and offers IP67 protection, making it suitable for diverse environmental conditions. This robust yet flexible module is ideal for a range of applications due to its compact, flexible, and user-friendly design.
ISOconnectECU is a telemetry box with various interfaces for connecting to machines, mobile devices and clouds.
The module is freely programmable and runs with both standard and OEM-specific applications. ISOBUS functions such as Task Controller and Data Logger can be added at the factory on request.
With a WLAN module, it has a customisable data interface to customer applications. A connection to the cloud can be established via the GSM/LTE module with exchangeable SIM card. It is equipped with an internal GNSS module and can also be connected to an external GNSS receiver via the serial RS232 interface. Up to four CAN interfaces are available for this purpose.
Software functions can be customised, extended and freely programmed to meet OEM requirements. By using a hardware key memory (secure element), customer applications and cloud connections can be optimally secured.
ISOconnect can be adapted easily to individual customer requirements. It is possible, for instance, to include additional useful functions or simply to customize the design with your own (company) logo. We also offer additional hardware in the ISOconnect family in the form of the ISOconnect ECU. This is intended for use with implements and has the IP67 protection class. In addition, there is a GPS receiver on board. Both the ISOconnect and the ISOconnect ECU are freely programmable and can be supplied with or without application software.
Compact
Our products are generally compact for easy integration.
Flexible
Our products are designed to be flexible in use.
User-friendly
Our products are developed to be user-friendly.
Thanks to its exceptional functionality and flexibility, ISOconnect is versatile in use:
- Wireless connection between machines and the cloud
- Transfer of ISOBUS tasks, process data, firmware updates and service data
- ISOBUS TaskController to control ISOBUS machines
- ISOBUS Data Logger to collect process data from ISOBUS machines
