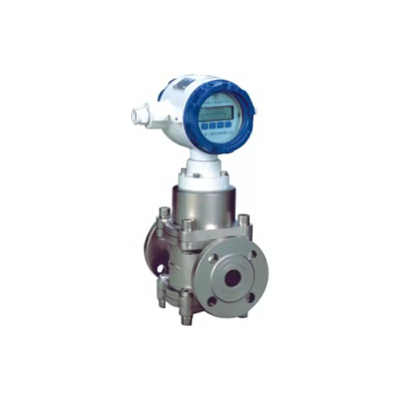

GPE - Model F2001 -Bi-Rotor Positive Displacement Flowmeter
F2001-Bi-Rotor Positive Displacement flowmeter features two precisely machined rotating members known as helical rotors which rotate and mesh within the meter`s interior housing in order to form a measuring chamber of known volume which may be used to accurately determine volumetric flow rate as a funtion of the rotors` velocity. The helical rotors` motion is transmitted to the display via a sealed coupling & drive system that enables the display to provide accurate data for both flow rate and total accumulated flow. The unique helical rotor design provides a number of advantages over traditional gear-type PD meters including reduced pressure drop, the virtual elimination of down-stream pulsations, enhanced particle tolerance, and reduced maintenance. The advantages provided by the helical rotor make the F2001 an ideal choice for many applications including oil-in-water media and fluids with entrained solids.
F2001 Bi-Rotors Flow Meter
- Superior accuracy to 0.1% of reading over 30:1 turn-down
- Uniform rotation means low pressure loss
- No metal-to-metal contact provides for long service lifetime
- Self-lubricating Very low noise and vibration
- Reduced number of parts reduces maintenance requirements
- Rugged double case construction prevents loss of calibration
- Due to changes in pressure or temperature
- Size from 3/4” to 16”
- Complied with OMIL R120~1996
F2001-R Series Rotary Vane Flowmete
- Superior accuracy: 0.1%
- Size from 1” to 16”( DN25mm-DN400mm)
- Turn-down ratio:30:1
- Low pressure loss
- Long service lifetime
- Self-lubricating
- Very low noise and vibration
- Easy maintenance
- Multi-option registers
- ATEX,UL approved electronic register
- Accuracy: up to +/- 0.1%
- Line size: 1/4” to 16” (DN8mm to DN400mm)
- Repeatability: +/-0.02%
- Working pressure: up to ANSI 600Lb or customized
- Pulse ouput: (18 to 36V, VH=20V)
- VL
- Process temperature: -22 to 480?(-30 to 250?)
- Current output: 4-20mA, ( two wires system w/600ohm max loop load
- 60mA)
- Viscosity: 0 to max.@ 20,000cp
- RS485 output: communication with modbus for D1 register only MODBUS RTU ( powered by 18 to 36V
- Protection: IP65( IP67 for options)
- Display: Instantaneous/Total/Batch
- Ambient temperature: 104 to 176?( 40 to 80?)
- Ambient humidity: 5% to 95% Rh @75?
- User parameter: K factors, linear correction coefficient flowrate input signal section points,temperature and pressure compensation, set pulse outpur range, decimal adjusment, etc.
- ATEX, Ul, FM approved registered pulser and electroic register
- Oil& Gas
- Chemical processing
- Pharmacentical
- Pulp& Paper Industry
- Solvents&Resins
- Paints& Adhesives
- Flow calibration
