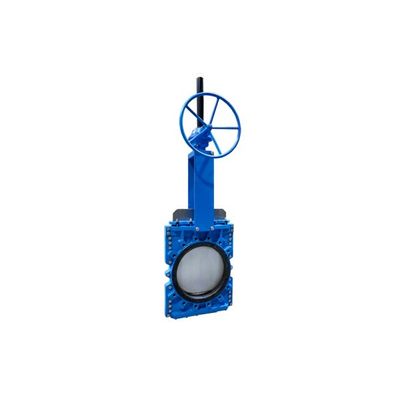

Valvulas - Model T300 -Bidirectional Slurry Knife Gate Valve
The Model 300 is a Bidirectional cutting wafer knife gate valve where the knife moves completely through the inner part of the body cutting the flow. The knife has a central round-shaped blade which, when opened, aligns with the bore of the valve hole, forming a clean straight-through path. Therefore, the fluid flows without any obstacle. Designed for fluids with suspended solids, with a maximum concentration of 20%. Internal guides for smooth movements. High temperature design available with internal graphite sealings.
Most popular related searches
knife gate valve
gate valve
knife gate
slurry knife gate valve
stainless steel gate
valve positioner
proximity sensor
solenoid valve
suspended solids level
knife gate slurry
- FLANGE CONNECTION :
- PN6/PN10/PN16/PN25/PN40
- ANSI125/150
- BST E / BST D
- JIS 5K JIS10K
- AS-2129-D/E
- SIZES & PRESSURES :
- DN50 to DN250: 10 bar
- DN300 to DN450: 6 bar
- DN500 to DN600: 4 bar (Higher design pressures on request)
- TIGHTNESS :Watertight
- MATERIALS : BODY GG25, GGG40, A216 WCB, CF8 (AISI304), CF8M (AISI316), CF3M (AISI316L), 254SMO, 654SMO, AISI310, AISI904, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti. SEAT EPDM, NITRILE (NBR), SILICONE, VITON, GRAPHITE, FLUCAST, PTFE. GATE AISI304L, AISI316L, 254SMO, HARDOX, AISI310, AISI904L, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti.AISI304L, AISI316L, 254SMO, HARDOX, AISI310, AISI904L, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti. PACKING SYNT+PTFE, Pure PTFE, GRAPHITE, CERAMIC, Greased COTTON..
- ACTUATORS : Manual, pneumatic, hydraulic, electric, gear box, hand lever, square end, chain-wheel, pneumatic with security hand wheel, pneumatic with security gear box.
- ACCESSORIES AND OPTIONS : Limit switches, proximity sensors, solenoid valves, positioner 4/20mA, locking devices, extension, cleaning holes, bonnet, etc.
- Wafer style casted two part internally machined bolted body.
- Design allows draining through the bottom part, where a cover or splash guard is available.
- Seat is made of two high abrasion resistant rubber sleeves (NBR, EPDM, Natural Rubber or Viton) with internal metal core to improve durability.
- Polished stainless steel gate in both sides and with rounded edges to ensure life of seat/packing elements.
- Ideal for high concentrated pulp stock, slurry, liquor and granulates.
DIRECTIVAS:
- DIR 2006/42/CE (machinery)
- DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
- DIR 2014/34/EU (ATEX) Area 2&22
