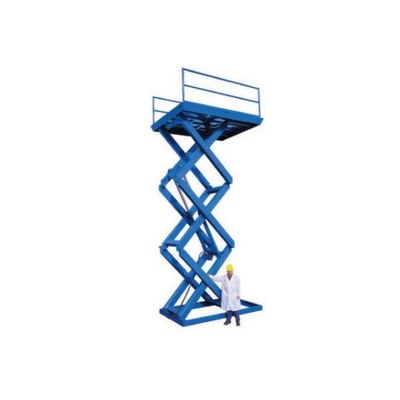

Advance Lifts - Model BFL2-2120 -Big Friggin Lift
The BFL series lifts were designed for the high travel applications that also require large platforms. These lifts are designed to move mulitple pallets or large loads up a floor level or to high mezzanines. These big lifts are all built with tubular steel legs to maximize the rigidity of the unit and to keep the weight down.
- Min. Platform Size: 72 x 96 in.
- Max. Platform Size: 96 x 120 in.
- Max. End Load Capacity: 2,000 lbs.
- Max. Side Load Capacity: 1,325 lbs.
- Lowered Height: 15.5 in.
- Raised Height: 134.5 in.
- Travel: 120 in.
- Speed: 45 sec
- External Motor: 5 HP
- Shipping Weight: 2,130 lb
- These units are equipped with the patented “Platform Centering Devices”, which doubles or triples lift life.
- All of the controllers are Underwriter Laboratory listed assemblies.
- These units are fully primed and finished with a baked enamel finish.
- The cylinders are machine grade with clear plastic return lines.
- The oil reservoirs are mild steel for long life.
- These units conform to all applicable ANSI codes.
- All pressure hoses are double wire braid with JIC fittings.
