Big-John - Speedy Soil Sampler

Base System

• 9.5 Hp Eng w/ electric start
• High pressure industrial Hyd pump
• Quick mount self contained skid w/ Hyd oil reservoir
• Priority flow Hyd Block
• Heavy Duty Tubular Steel Outrigger Tower w/ patented bit cleaner
• Carbide Spade Tip Auger capable of 36” cores
• Integrated Electrical system w/ in cab Control Counsel

• Granite Grinder Drill Sensor
  • Monitors resistance on drill to prevent stalling
• Single Switch Mode
  • Converts ctrl system to an automated cycle with a dead man switch
• Electronic Throttle Control
  • In cab control of Eng. throttle
• Twin Tip Auger
• Additional Spade Tip Auger
• Drill Hose quick coupler Kit (2ea)
  • Used to reverse the Drill in case it sticks or stalls
• Full Hose quick coupler Kit (6ea)
  • Allows the sample tower to be disconnected from skid for storage
• 14 Hp Eng
• Custom Mounting Kit & Installation

• Extend sampling season
• sampling with speed and accuracy

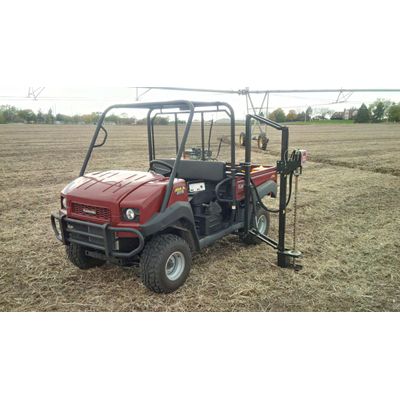

• Mount on ATV or UTV or pickup
• Easy access sample bucket
• Sample depths from 0-36 inches
• multiple depth stops
• 20" transport clearance
• Outrigger foot designed to eliminate loose surface soil from contaminating soil samples
• Outrigger transfers weight of UTV and operator to the drill bit
• Outrigger eliminates pressure on vehicle when auger is removed from the ground
• Penetrates frozen ground
