Bimal - Model BI701K -Impulse Test Stand

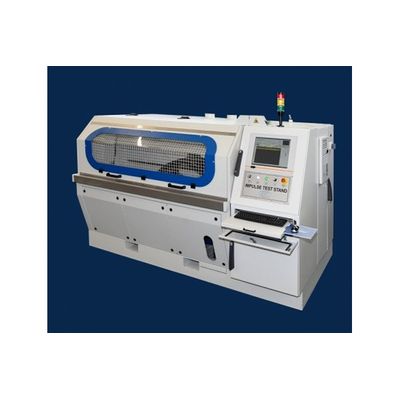

BI701K is a test stand for impulse test of hydraulic components like flexible hoses and rigid pipes, fittings, quick action couplings, valves, filters and other components.
Most popular related searches
- Square wave impulse: SAE J343 - ISO 6803 - ISO 6605 - ISO 18869
- Maximum Test Pressure: 700 bar (10150 psi)
- Minimum Test Pressure: 50 bar (726 psi)
- Displacement per Impulse: 330 cm3 (20.1 inch3)
- Test Frequency range: 0,05 ÷ 1 Hz
- Maximum oil temperature: 130°C (266° F) or 150°C (302° F) with optional HT system
