BinMaster - Model 730-0110 -18" Shaft with 316 SS Sphere for BM-T Tilt Switch
The 18” Shaft with 316 SS sphere is used with the BM-T tilt switch in applications where the material can build up around the standard paddle without actuating the switch. This is typically in fine powders, lighter materials, and liquids.
Tilt switch: Simple, high-level detection
Prevent overfilled bins, overloaded conveyors, and plugged chutes.
Need affordable high-level alerts? Want to avoid clogged chutes or conveyors?
Use the BM-T in solid materials with a density of 15 lb./cu. ft. or greater.
How it works:
A mechanical switch activates an alert when the device is tilted to 15 degrees.

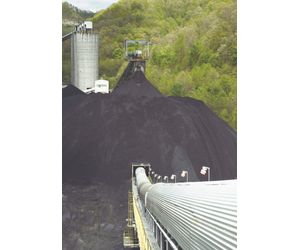

Where it’s installed:
- On the roof of bins, silos, and storage
- Above material as a load sensor on conveyor belts
- Suspended over open pits during processing
- Over top of piles of grains or aggregates
- In chutes to detect and prevent plugs or clogs
- At the end of radial stacker conveyors to index the conveyor and shift the pile
Overflow Prevention
High-level alerts to avoid overfilling vessels
Material Outages
Low-level alerts eliminate empty conditions
Plugged Chutes
Detect when chutes are clogged with material
Process Control
Switching relay to turn a process off or on
Conveyor Overload
Prevent jamming or damaging conveyors
