BinMaster - Model BM-TSM-730-0667 -Mercury-Free Tilt Switch
Tilt switch for high-level limit switch application for stationary mounting. Certified for Class II Groups E, F, and G.
Mercury-free: Fixed mount tilt switch

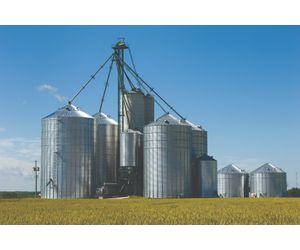

High level detection of powders and bulk solids in bins, silos, or over a conveyor belt.
Want to prevent overfilling bins? Stop overloading conveyors?
Use the BM-TSM mechanical tilt switch in bulk solid materials with a bulk density of at least 15 lb./cu. ft.
How tilt switch sensors work:
When material rises and tilts the switching mechanism 15 degrees, it activates a switch that sends an alert to a horn, light, or control panel.
What’s special about the BM-TSM:
- Mercury-free design eliminates environmental or recycling hazards
- C/US Class II, Division I Groups E, F, and G, and ATEX Zone 21 hazardous location approvals
- Patented, non-powered pendulum design works mechanically and reliably
- Custom shaft lengths from 1 foot up to 8 feet available with paddle or sphere
- Simple, fixed mounting installation through a 1.25” NPT process connection
Overflow Prevention
High-level alerts to avoid overfilling vessels
Material Outages
Low-level alerts eliminate empty conditions
Plugged Chutes
Detect when chutes are clogged with material
Process Control
Switching relay to turn a process off or on
Conveyor Overload
Prevent jamming or damaging conveyors
- SKU: 730-0667
- Means of Measurement: Tilt Switch
- Measurement Type: Point Level
- Medium: Solids
- Voltage : Up to 250 VAC
- Outputs: Relay SPDT
- Ambient Temperature: -40°F to +185°F (-40°C to +85°C)
- Process Temperature: Up to +176°F (80°C)
- Approvals: CSA Class II, Groups E, F & G
- Enclosure Type: NEMA 4X, NEMA 5, NEMA 12, IP 66
- Enclosure Material: Die cast aluminum
- Mounting: 1.25" NPT
- Conduit Entry: 0.75" NPT
