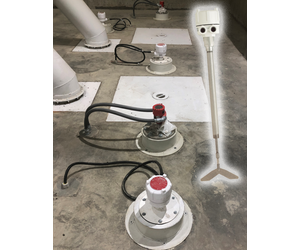

BinMaster - Model BMRX -Extended Flexible Cable Hanging Rotary
Extended flexible hanging BMRX extensions for use in heavy falling material. A rugged, flexible 8 mm steel cable in custom lengths 4” to 14’ long is attached to a top-mounted rotary. This vertically oriented extension measures further down into the bin to prevent overfilling or to protect valuable sensors at the top of the bin. A BinMaster expert will help you configure your custom rotary!
Extended Rotary: Tailored to your application
Custom-made in days!
The BMRX-100/200/300 series rotaries can be customized fast with options competitors cannot match.
So many choices:
- Rigid galvanized and stainless-steel extensions as well as flexible extensions for lump material
- Horizontal extensions for thick bin walls and side mounting plates
- Stainless steel process connections, heat tubes, and an ATEX option for special applications
- 19 different paddle types including insertable, collapsible paddles
- Roof mounting plates for 0°, 10°, 20°, and 30° roofs and an adjustable top mount
Whether for routine MRO or a new rotary application, let our sales team get your new rotary customized for your point level needs!
Overflow Prevention
High-level alerts to avoid overfilling vessels
Material Outages
Low-level alerts eliminate empty conditions
Plugged Chutes
Detect when chutes are clogged with material
Process Control
Switching relay to turn a process off or on
Conveyor Overload
Prevent jamming or damaging conveyors
- SKU: BMRX-Flexible-Cable-Hanging
- Means of Measurement: Rotary Paddle
- Measurement Type: Point Level
- Medium: Solids
- Voltage : 115 VAC, 230 VAC, 24 VAC, 24 VDC, 12-24 VDC
- Outputs: Relay DPDT 10 Amp - 250 VAC max
- Ambient Temperature: -40°F to +185°F (-40°C to +85°C)
- Process Temperature: Up to +240°F (116°C)
- Approvals: CSA/US Class I, Groups C & D and Class II, Groups E, F & G, Ex II 2G c 1/2D c Ex d IIB T4 Gb Ex tb IIIC T130C Db (Ta = -20C to +85C)
- Enclosure Material: Die cast aluminum
- Mounting: 1.25" NPT, 1.5" NPT
- Conduit Entry: 0.75" NPT
