BinMaster - Model CNCR-220 -Compact Non-Contact Radar Sensor
The CNCR-220 is a compact 80 GHz non-contact radar for distances up to 49 ft (15 M). It installs using a 1.5” threaded NPT or 1.5” threaded straight NPT connection. The enclosure is rated IP66/IP67, Type 4X to protect from dust and water damage.
CNCR-200 Non-Contact Radars: 80 GHz accuracy and 1.5” NPT mounting

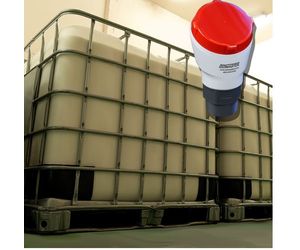

Bluetooth setup on your phone. Mounts fast through existing threaded or straight NPT connections. Measures liquid tanks, plastic IBCs through the wall, or short solids silos.
Looking for an alternative to an ultrasonic sensor?
Continuous level measurement with the 80 GHz radar signal is focused in a narrow beam that measures with accuracy of +/- 0.2”.
Want a radar sensor that works under harsh conditions?
Sensor is immune to condensation, turbulence, and foam. Not affected by fluctuating temperatures or pressure.
Models to make the most of your measurements:
CNCR-210: measures up to 26 feet
CNCR-220: measures up to 49 feet
CNCR-230: Up to 49 feet plus an LED display
Note: For solids, distances are 50% less.
Need hazardous approvals? Check with the factory.
You and your maintenance crew will love these sensors:
- No dead zone, measures to sensor face
- Two-wire 4-20 mA output
- IP66/IP67, Type 4X dust and moisture resistant PVDF enclosure
- FKM seal material for longevity under harsh conditions
Try this level sensor in these applications and more:
- Foods, fats, and oils for humans or animals
- Municipal drinking or purified water plants
- Industrial processing of chemicals or fluids
- Day tanks, cooling towers, or waste sumps
- Plasticizer or resin tanks or silos
- Oil and fuel storage tanks
- Flood, river, dam, or sewer levels
Versatile. Resolute. Did we say 80 GHz?
Inventory Management
Ensure adequate supply for production, prevent material shortages.
Manage inventory while in the plant, while traveling, or away from the office.
Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.
Monitor conveyed or truck loaded materials in large storage structures.
Manage pile height, size, and volume of bulk materials.
- SKU: CNCR-220.
- Means of Measurement: Radar
- Measurement Type: Continuous Level
- Medium: Solids, Liquids
- Voltage : 12-35 VDC
- Outputs: Loop Powered 4-20 mA
- Ambient Temperature: -40°F to +158°F (-40° to +70°C)
- Process Temperature: Up to +176°F (80°C)
- Approvals: Contact factory for latest updates.
- Enclosure Type: IP 66, IP 67
- Enclosure Material: Plastic
- Mounting: 1.5" Threaded NPT, 1.5" Threaded Straight
- Range: 49 ft. (15 M) liquids / 25 ft. (7 M) solids
