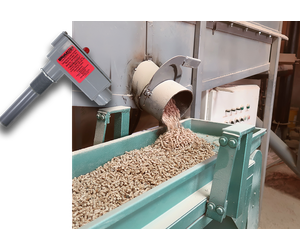

BinMaster - Model CompactPro 115 VAC-730-0250 -Compact Capacitance Probe
CompactPro 115 VAC Compact capacitance probe with buildup protection.
Compact PRO: Compact capacitance probe for tight spaces
Point level sensor for high or low-level measurement and plugged chute detection in liquids, powders, granules, and pelleted materials.
Works where proximity switches won’t!
Installation: Metal, plastic, or non-metallic tanks, bins, silos, chutes, conveyors, pipes, or load out hoppers
Materials: Plastics, chemicals, concrete, food ingredients, pharmaceuticals, feed, grain, wood, or paper processing
Small size, big on benefits:
- Light and compact size makes it easy to install
- Simple one-time calibration ensures fast setup
- Sensitivity up to less than one picofarad
- Visual LED sensor status for covered or uncovered
- PRO-Shield ignores material buildup, prevents false alerts
Power: 115, 230 VAC or 24 VDC
Mounting: 1” NPS (1-1/4” adapter available)
Enclosure Ratings: NEMA 4X, 5 & 12
Overflow Prevention
High-level alerts to avoid overfilling vessels
Material Outages
Low-level alerts eliminate empty conditions
Plugged Chutes
Detect when chutes are clogged with material
Process Control
Switching relay to turn a process off or on
Conveyor Overload
Prevent jamming or damaging conveyors
- SKU: 730-0250
- Means of Measurement: Capacitance
- Measurement Type: Point Level
- Medium: Solids
- Voltage : 115 VAC
- Outputs: Relay SPDT
- Ambient Temperature: -40°F to +185°F (-40°C to +85°C)
- Process Temperature: Up to +176°F (80°C)
- Enclosure Type: NEMA 4X, NEMA 5, NEMA 12
- Enclosure Material: Plastic
- Mounting: 1" NPS
