BinMaster - Model PRO Autocal 115 Power Pac-PA1 -Capacitance Probe
The BinMaster PRO AUTO-CAL 115 Power Pac delivers streamlined, high-precision point-level detection powered by 115 VAC. Its standout feature—automatic calibration using a magnetic trigger—lets users calibrate and test without removing the cover. Enjoy ultra-sensitive performance with adjustable time delay (0.5–10 seconds) to virtually eliminate false signals. PRO-Shield technology keeps material buildup from compromising accuracy, while low-frequency operation ensures immunity to RF interference. A bright LED status indicator keeps you clearly informed of covered, uncovered, or power fault conditions. Quick, reliable, and maintenance-minimizing—this unit is designed for seamless performance in demanding environments.
PRO AUTOCAL: Calibration Without Opening the Unit
This capacitance sensor allows for simple, automatic calibration using a special magnet. No need to remove the unit cover!
Want a capacitance probe that sets up fast? Temperature-stable calibration and external testing can be performed in just minutes.
Get unsurpassed 0.5 pF sensitivity and fail-safe performance with the PRO AUTOCAL. Plus, an adjustable time delay of up to 10 seconds allows for settling of material—virtually eliminating false alarms.
What else you get with PRO AUTOCAL:
- PRO-Shield compensates for material buildup to guard against false readings
- Operates below RF range, always free from RF interference
- Switch selectable high/low fail-safe safeguards from failures
- Delrin or Teflon sleeved, bare, food grade, flush mount, or flexible probes
- Visual LED indicates sensor status of uncovered, covered, or power failure
How and where to use PRO AUTOCAL:
- For point level detection and process control for solid, liquids, or slurries
- Aggressive materials such as coal or fly ash; power, mining, and foundries
- Processing of plastics, chemicals, foodstuffs, or pharmaceuticals
- Milling operations processing feed, grain, wood, or paper
Overflow Prevention
High-level alerts to avoid overfilling vessels
Material Outages
Low-level alerts eliminate empty conditions

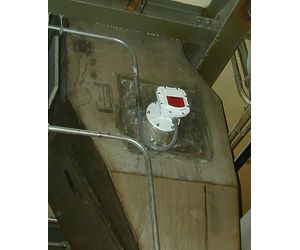

Plugged Chutes
Detect when chutes are clogged with material
Process Control
Switching relay to turn a process off or on
Conveyor Overload
Prevent jamming or damaging conveyors
- SKU: PA1.
- Means of Measurement: Capacitance
- Measurement Type: Point Level
- Medium: Solids
- Voltage : 115 VAC
- Outputs: Relay DPDT 10 Amp - 250 VAC max
- Ambient Temperature: -40°F to +185°F (-40°C to +85°C)
- Process Temperature: Up to +176°F (80°C)
- Approvals: Unlisted
- Enclosure Type: NEMA 4X, NEMA 5, NEMA 9, NEMA 12
- Enclosure Material: Die cast aluminum
- Mounting: 1.25" NPT
- Conduit Entry: 0.75" NPT
