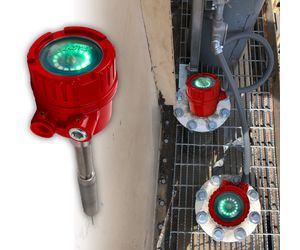

BinMaster - Model VR-41-C -Vibrating Probe Level Sensor With Pipe Extension for Hazardous Locations
VR-41-X - Vibrating rod level sensor with pipe extension, 20 to 250V AC/DC, process temp to 176°F (80°C), triple thread screw-off cover, dual conduit entries, DPDT relay contacts, selectable fail-safe protection, FDA recognized powder coat finish, LED status indicator light. CSA C/US listed for Class ll, Groups E, F, & G. Must add pipe extension.
Vibrating Probes with Rigid and Flexible Extensions
Top mounted for high point level detection to prevent overfilling.
Extended vibrating rods are ideal when you want to leave a certain amount of headspace in the silo. Wire them to an alert—such as a light, horn, or alarm panel—or a PLC to shut a process off or turn it back on.
The VRX41 and VRX51 both feature a unique sword-shaped vibrating probe that resists buildup and prevents false alarms. No calibration required. Wear and maintenance free!
Prolonged perks of extended vibrating probes:
- Ideal for high- or low-level monitoring and plugged chute detection
- For use in material densities of 1.25 lb./ft.³ or greater
- Detect extremely light, fluffy materials with low-dielectric constants
- Two sensitivity settings
- Switch selectable high/low failsafe
- Coming soon! Optional hazardous location approvals for CSA Class II
Custom extension lengths made to order in Lincoln, Nebraska, USA!
VRX41 Rigid Extensions: From 13" up to 13` (33.02 cm to 3.96 m)
VRX51 Flexible Extensions: From 19" up to 19` (48.26 cm to 5.79 m)
Try an extended vibrating probe in carbon black, plastics, fly ash, feed, seed, grain, food, chemicals, and other light and low-dielectric materials!
Overflow Prevention
High-level alerts to avoid overfilling vessels
Material Outages
Low-level alerts eliminate empty conditions
Plugged Chutes
Detect when chutes are clogged with material
Process Control
Switching relay to turn a process off or on
Conveyor Overload
Prevent jamming or damaging conveyors
Sediment Levels
Detect solid material settled in a tank containing liquids
- SKU: VR41.C
- Means of Measurement: Vibrating Rod
- Measurement Type: Point Level
- Medium: Solids
- Voltage : 20 to 250 VAC/DC
- Outputs: Relay DPDT 10 Amp - 250 VAC max
- Ambient Temperature: -40°F to +150°F (-40°C to +65°C)
- Process Temperature: Up to +300°F (148°C)
- Approvals: CSA Class II, Groups E, F & G
- Enclosure Type: NEMA 4X, NEMA 5, NEMA 12
- Enclosure Material: Die cast aluminum
- Mounting: 1.5" NPT
- Conduit Entry: 0.75" NPT
