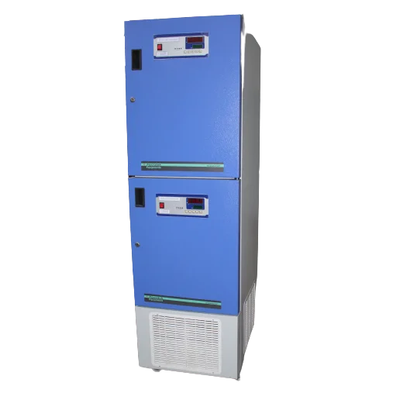

Ferrotek - Model FE-111 -Biochemical Oxygen Demand (BOD) Incubator

FromFerrotek Equipment

SHARE

Biochemical Oxygen Demand Tests, storage of cultures, vaccines, culture of bacteria, micro-organism, serum incubation, seed germination etc. ferrotek BOD Incubators are primarily designed for Biological Oxygen Demand test performed in Laboratories, Pollution Control Houses, Research & Development Centres etc. Also used for Incubation of samples at a set temperature in Industrial Houses, Medical Centres, Hospitals & Educational Institutes .

Most popular related searches

biochemical oxygen demand

biochemical oxygen

digital temperature controller

stainless steel sheet

biological oxygen demand

biochemical incubator

Precise Temperature Control with PID Control.
Ergonomically Designed for versatile usage.
Low Maintenance & Energy Efficient.

Temp. Range is from 05 – 50 oC, controlled with an accuracy of +/- 0.5 oC by PID based Digital Temperature Controller cum Indicator with pt-100 sensor.
Cooling through Hermetically sealed, high performance CFC Free, ISI Marked Cooling Compressor with relays, condenser, fan motor and capacitor etc.
For Heating, Strip Heating elements are placed in the path of moving air.
Temp. Uniformity maintained by couple of F.H. Motors with fan.
Triple walled construction with Outer Body made of Stainless Steel (304) / Mild Steel Powder coated enamel & Inner Chamber made of Heavy Stainless Steel sheet with ribs for adjusting perforated shelves at convenient height. Unit is mounted on castor wheels for easy movement.
Three adjustable Perforated Shelves will be provided.
Full view inner acrylic door closes on a resilient gasket & permits inspection of the specimens, without disturbing the thermal conditions of the chamber.
Door with Magnetic Gasket with Lock & Key arrangement.
Door Operated illumination will be provided.
75 mm Gap between the walls is filled with high grade mineral glass wool for proper insulation and to avoid thermal loss.
To work on 220/240 Volts AC, Single Phase Supply.
