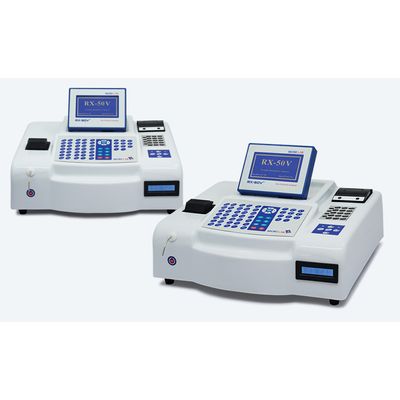

Microlab - Model RX 50V -Biochemistry Analyzer
User friendly software, End point method - Storage of abs of regent blank in memory / 10 graphs for KIN test, Triplicate calibration mode for EP / KIN / Fix time. Triplicate mode of sampling with mean / SD / CV, Print out of laboratory and doctor`s name, For kinetic test: On line graph and OD, graph editing facility, estimation of result, Air purge between samples to avoid carry over / lamp saver mode, 35 Direct test keys for test selection, Utility mode for self diagnosis checking / 16 bit ADC, Sample type: serum / plasma / CSF / urine / whole blood / hemolysate, Calculator for lipid profile / globulin ratio / S. Iron TIBC / bilirubin.
- Absorbance
- End Point with standard / factor
- Kinetics
- Fixed time
- Differential
- Coagulation
- Multipoint upto 10 standards
COAGULATION
INR / ISI Value % / Seconds
Auto / Manual start
Parameters: PT / APTT
Filters: 405 nm
OPTICAL SYSTEM
Principle: Absorption spectrometry
Range of measurement: From – 0.1 to 3.0A
Nominal spectral range: Automatic via filter wheel
Filters: 340, 405, 450, 505, 546, 578, 630 and 700nm interference type
Bandwidth: 10 nm (± 2nm)
Light source: Halogen lamp 12V / 20W OR 6V/10W
Zero: Automatic
Settings: Monochromatic and Bichromatic readings.
Detector: Schottkey type Photodiode - Silicon
THERMOSTAT SYSTEM
Peltier regulated 25°, 30° & 37°C programmed / RT
Accuracy: ± 0.1°C
INTERFACE
RS - 232 For PC Connection
Parallel Port - For 80 Column Dot Matrix Printer
DRY BATH INCUBATOR
13 mm Diameter: 15 Positions
10 mm Diameter: 4 Positions
Default Temperature: 37° C + 0.2° C
3 Inbuilt Timers: T1 / T2 / T3
4 Default Time: 3 Min. / 5 Min. / 10 Min. / 15 Min
1 Location Open: Editable up to 99 Hours / 99 Min.
Temperature Setting: 25°C to 45°C
LCD: Alpha Numeric 20 x 2 Lines
Keyboard: Soft Tactile Switches
CUVETTES
Flow cell of 18 mL
Removable cuvettes: Macro, Semi-micro & Micro Plastic or Glass
PRINTER
Type: Fast Thermal Graphic
Printing speed: 50 mm/sec
Dots per line: 384 dots/line
Paper: Thermosensitive - 57 mm wide, Easy Loading
SCREEN AND KEYBOARD
Screen: Graphic LCD 240 x 128 pixels
Back Light: Blue LED Back lit
Keyboard: PS-2 Type
SUCTION SYSTEM
Continuous flow system with peristaltic gear pump.
Sipping volume can be programmed from 300 ml to 5.0 ml.
PROGRAMMING
Table of tests: up to 235
Table of units: up to 9 units
Quality control storage of the last 30 results
Memory: 128 KB EEPROM (1000 Test Results)
QUALITY CONTROL
2 Controls per test - Normal & Abnormal
Levy-Jennings charts
Westgard`s rules
POWER / DIMENSIONS
Voltage: 110-220 V
Frequency: 50 - 60 Hz
Maximum power: <110W
Temperature: 10° to 40° C
Maximum relative humidity: 80%
Dimensions: 45 cm x 41 cm x 17 cm
Weight: 8 kgs
