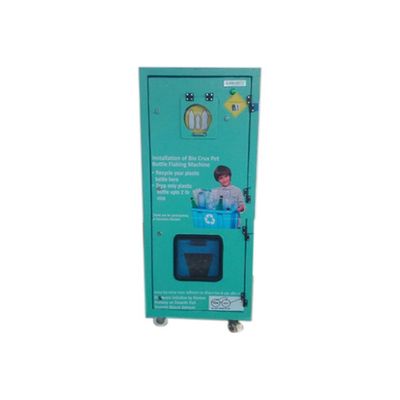

BioCrux - Model C -Automatic Noiseless Pet/Plastic Bottle and Can Crushing Machine
Biocrux C is an automatic Noiseless pet/plastic bottle and can crushing machine. The machine is made with micro hybrid concept, it start and stop automatically based on the bottle/can feed. The mouth of the machine is attached with a flap which controls the movement of the machine. After crushing machine will stop automatically and remain shut till another bottle/can is fed in the machine. Each feed will reset the machine for next cycle as per time fixed in timer.
Most popular related searches
DIMENTIONS:
- Overall Height: 1690 MM
- Overall Width: 800 MM
- Overall Depth: 1000 MM
Weight: 400 KG
Capacity: 300-350 bottles and cans per hours
BODY: MS Steel
Indicator: To indicate machine is running
Size/Quality of Bottles: Upto 2000ML bottle of PET/Plastics or upto 300 ml cold drink cans
WINDOW in bottom : 300 MM X 300MM
- Motor: 3HP – Crompton/Havels
- Connection: Single PHASE (230 V) 2.2 KVA / 3 PHASE (440 V) 2.2 KVA
- Crushing Mechanism: Roller with specially designed teeth
- Black Box: With E. Nickel/Chrome plating
- Hopper: Specially designed hopper – to absorb upto 2000ml bottle standing
- Starter: L & T for 3 phase/Single
- Limit Switch Safety Switch: Limit Switch ensure auto starts of machine. All doors attached with safety switch to prevent any accident
- Wall: Insulated inside to absorb noise of machine
- FLAP + Limit switch: Regulate machine: Start/stop - Micro Hybrid
- Storage Bin :Capacity : 300-350 bottles or cans per hour
- Dimension : 650 L X 400 H X 400 W
- Body : MS and Acrylic window Roller in bottom for free movement
