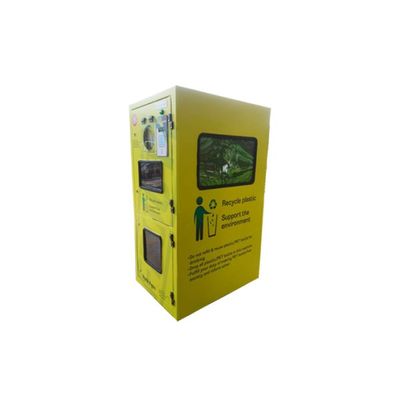

BioCrux - Model RVMD 3T -Reverse Vending Machine Digital with 3 Side Display
Reverse Vending Machine-Digital with 3 side display is an automatic Noiseless pet/plastic bottle flaking and coupon machine. The machine is made with micro hybrid concept, it start and stop automatically based on the bottle feeding. The mouth of the machine is attached with a flap which controls the movement of the machine. After flaking machine will stop automatically and remain shut till another bottle fed in the machine. Each fed will reset the machine for next cycle as per time fixed in timer.
Once bottle inserted machine starts automatically and crush the bottle in fine pieces. It has digital coupon vending feature:
SMS based Couponing System: Once user drops a bottle dropped,in the machine, he will be prompted for mobile numbero. Once user inserts the mobile number via the key pad provided on the machine., Machine will send SMS to customer the user mobile with discount coupon to redeemable at predefined counter as per specification fed.
SMS text sent to the user and Video played on the screen are fully customizable
- DIMENTIONS:
- Overall Height: 1800 MM
- Overall Width: 800 MM
- Overall Depth: 1000 MM
- Weight: 400 KG
- Capacity: 90-120 bottles per hours
- Two line digital Display: Indication of Dropping bottle
- Key Pad: Enter Mobile number Mobile charging point
- BODY: MS Steel
- Indicator: To indicate machine is running
- Size / Quality of Bottles: Upto 2000ML bottle of PET/Plastics only
- Digital Screen: 20" size in front and 28" screen on both side
- WINDOW in bottom : 300 MM X 300MM
- Motor: 3HP (2.2 KVA) – Crompton/Havells
- Connection: Single PHASE (230 V) / 3 PHASE (440 V)
- Blade: D2 blade – 3 rotary & 2 fixed
- Black Box: With E. Nickel/Chrome plating
- Control Panel: Micro processor
- Hopper: Specially designed hopper – to absorb upto 2000ml bottle standing
- Starter: L & T Single phase Smart starter / L & T for 3 phase
- Blade:: D2/Chrome blade – 3 rotary & 2 fixed
- Limit Switch Safety Switch: Limit Switch ensure auto starts of machine. All doors attached with safety switch to prevent any accident
- Wall: Insulated inside to absorb noise of machine
- FLAP + Limit switch: Regulate machine: Start/stop - Micro Hybrid
- Filter: To manage the size of flakes
- Capacity : 15Kg 750 to 800 one liter Bottle
- Dimension : 650 L X 400 H X 400 W
- Body : MS steel and Acrylic window. Roller in bottom for free movement
