Metal Samples - Model BIoGEORGE BG4 -Biofilm Growth Detector
Metal Samples in cooperation with Structural Integrity Associates, Inc., offers the BIoGEORGE BG4 biofilm growth detection system - a modern approach to monitor the effectiveness of a biocide treatment program to ensure sufficient application of biocide for system cleanliness.
- Mitigate MIC through real time biofilm monitoring
- Reduce thermal fouling by controlling biofilms
- Optimize biocide treatment programs

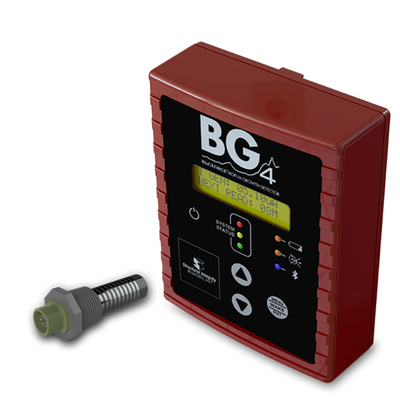

The BIoGEORGE BG4 Biofilm Growth Detector system, originally developed for and proven in power plant cooling water systems, monitors biofilm activity on the surface of a stainless steel or titanium probe continuously and in real time. Biofilm formation occurs more rapidly on the probe than on system piping or heat exchanger tubes. As a result, maintaining the probe in a clean condition assures that the pipe work, heat exchangers or other system surfaces are clean. The BIoGEORGE BG4 system consists of a probe, its integrated electronics, interconnecting cable, display software, a user manual, and product support.
Instrument:
- Dimensions (approx.): 5.5 x 4.375 x 1.5 in (140 x 110 x 38 mm)
- Weight (approx.): 1 lb (0.5kg)
- Power Supply: 5.0 mm DC Power Port or Battery
- Battery Type: Rechargeable 17.3 W, 3.6 V internal lithium ion
- Battery Life: 6-months of continuous operation capable
- Display: LCD (2 lines, 16 characters)
- Interface: Menu/Wake/Enter/Up/Down/Power on/off buttons
- Indicators: Six Status LEDs
- Storage Temperature: 0°-150°F (-18°-66°C)
- Operating Temperature: 10°-120°F (-12°-49°C)
- Humidity: 0-80% relative
- Noise Level: <65 dBA
