Biofuel-Systems - Filter Systems

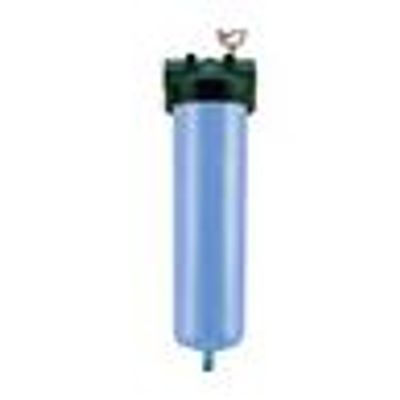

Far higher flow rates achievable with lower pressure drop

Far higher sediment holding capacity

Replacement bags are significantly cheaper than cartridges

Bag filtration systems are fitted with biodiesel resistant Viton o-rings

Centrifugal Separators can be used for mechanical separation of water from either biodiesel or vegetable oils as well enabling very rapid separation of biodiesel and glycerol from the transesterification process. We supply enhanced safety separators with ATEX certified explosion protected motors and inert gas purge facility

Mechanical separation of water from biodiesel, whether by gravity or centrifuge, does not remove dissolved water. Further drying is required. An effective way to dry biodiesel is by passing it through a fixed bed of synthetic Zeolite molecular sieve beads. Our specially manufactured Zeolite is resistant to biodiesel process chemicals and will hold 18% of its dry weight in water. 3A Zeolite can also be used to dry recovered methanol as well as for the production of ahnydrous ethanol and solvents.
