AD Process Simulation - Model BioReactor Simulator (BRS) -Biogas/Anaerobic Digestion

BRS® offers you:

• Essential information for designing and operating a biogas plant
• On-line monitoring anytime, anywhere
• Precise, accurate data
• Standardised measurement procedures for experiments with high data generation and prolonged timescales
• A storage and computation solution for experiments with high data generation and prolonged timescales
• Compatibility with bioreactors in different configurations and sizes
• Easy to use cloud-base software
• Reduction in labour and skill demands for carrying out biogas simulations

Does it sound interesting? You can read more from here.

Standalone reactors, configuration and size options

CSTR-5S, CSTR-10S, CSTR-5G and any other reactor configuration provided by BPC Instruments

• Reactor type: CSTR Volumes: 5 l, 10 l, 5 l
• Materials: High quality glass and stainless steel (AISI 316)
• Mixing: Multifunctional agitation system with brushless stepper DC motors for long-life operation. Remote speed and on/off control via analogue voltage signal (0-12 VDC). Manually adjustable speed, direction and time interval, as well as timer function to set time periods for reversal. Modular design for low maintenance. Rotating speed range: 15-300 rpm (power supply sold separately).
• Temperature control through external recirculation water bath (sold separately)
• Dimensions: CSTR-5G: H 38 x W 24 cm, CSTR-10S: H 77.5 x W 32.5 cm, CSTR-5S: H 74.5 x W 28.5 cm
• Weights: CSTR-5G: 7.8 kg, CSTR-10S: 16.5 kg, CSTR-5S: 12.8 kg
• Usage: Indoor applications

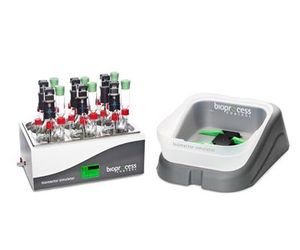

Incubation unit with six 2 litre reactors

• Maximum number of reactors per system: 6
• Reactor material: glass
• Reactor volume: 2 litres
• Dimension: 53 x 33 x 24 cm
• Temperature control: up to 95 °C (203 °F) (precision of 0.2 °C)
• Mixing of reactors: Multifunctional agitation system with brushless DC motors for long-life operation. Remote speed and on/off control via BPC® BioReactor Simulator software control interface. Manually adjustable direction and time interval, as well as timer function to set time periods for reversal. Modular design for low maintenance. Rotating speed range: 10-200 rpm.

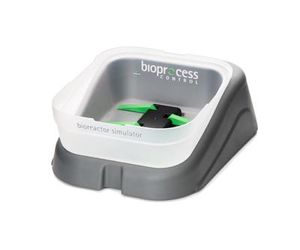

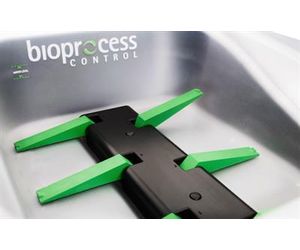

Flow cell array and DAQ unit

• Working principle: liquid displacement and buoyancy. Up to six cells running in parallel. Built-in pressure and temperature sensor. Integrated embedded data acquisition.
• Measurement resolution: 9 ml
• Measuring range: 1 to 6000 ml/h
• Dimension: 51 x 44 x 18 cm
• Housing: plastic
• Repeatability: ±1%

Software & System

• Web-based software running on a cloud solution, accessible from any location with an internet connection, via industry-strength encryption
• Supports both manual and automatic feeding
• Possible to run experiments with high data generation for prolonged timescales without storage and computational issues
• Embedded temperature and pressure sensors for real-time gas flow and volume normalisation
• Standardised report generation in Microsoft Excel format for easy usage combined with on-line storage
• On-board storage for data caching
• Possibility of multiplexing, allowing for the simultaneous initiation of parallel experiments at different startup times
• User-friendly interface for experiment follow-up
• Power supply: 100 or 240 AC 50/60 Hz
• Usage: indoor

Please feel free to contact us for more information or make an offer request by visiting BioReactor Simulator product page.
