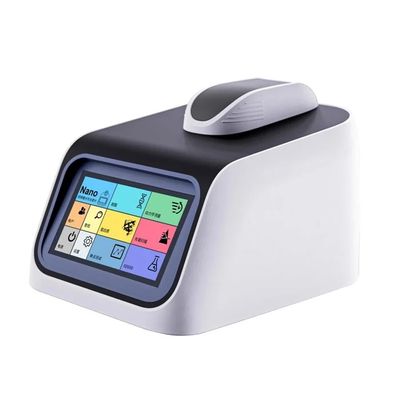

Metash - Model B-600 -Biophotometer Nano UV Visible Spectrophotometer

• Brand：Metash
• Model：B-600
• Minimum：1
• Unit：Unit

1. High-quality flash Xenon lamp, longer service life.
2. High resolution CCD detector, fast measurement (5s), high repeatability and accuracy.
3. 7 inches LCD color touch screen, stand-alone system, no need PC.
4. User-friendly operating system, module UI design, simple and clear.
5. No need to dilute sample, 1uL to 2uL is enough.
6. Multi-functions: Nucleic acid, Protein, Kinetics, Spectrum scanning, End-point and OD600 measurement.
7. Available to upgrade software by USB, low maintenance cost.
8. Storage by USB, simple to retrieve test data.
9. Two USB ports for data transmission and outer tools like mouse and keyboard.
10. Smart and compact design, light and easy to move.

Generation Specification

• Light Source: Xenon Lamp
• Detector: CCD (2048Pixels)
• Wavelength Range: 190-1100nm
• Wavelength Accuracy: ±1nm
• Spectral Resolution: 0.3nm
• Dimension: 230*290*220mm
• Weight: 3kg
• Operating Voltage: 12V DC
• Power Consumption: 18W
• Nano Volume Specification
• Absorbance Precision: 1%@100ng/µl
• Absorbance Range: 0-200Abs(10nmequivalent)
• Detection Limit: 2ng/µl(dsDNA)
• Max. Concentration: 15000ng/µl（dsDNA）
• Measurement Time: 5s
• Min. Sample Volume: 1µl
• Path Length: 0.01-1.2mm( auto-ranging)
• Cuvette Specification
• Beam Height: 8.5mm
• Absorbance Range: 0.002-2.0Abs
• Measurement Time: 3s
• Path Length: 10mm
