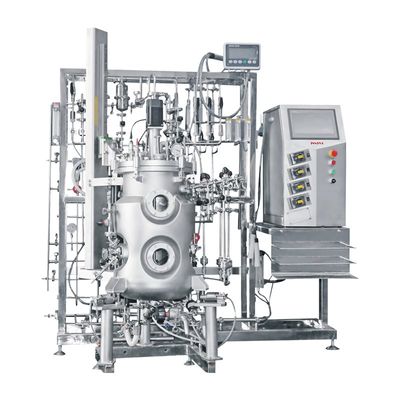

Innova - Bioreactor/Fermenter for Cultivated Meat

1. Suspension cultures of microorganisms and cells
2. Developing and optimizing of cell culture process
3. Seed amplification
4. Mass production

• The culture volume is 5~10000L.
• By modular design, provide various functions from general to comprehensive.
• By advanced pressure vessel manufacture process and functions, it meets most requirements of today`s bio-pharmaceuticals.
• This system provides a thorough solution for different kinds of budgets and requirements.

• With a mature, stable, universal Siemens PLC control system to realize automatic control.
• 10″ touch screen, friendly human-computer interaction.
• The design structure and selection enhance the reliability of the system. It will not be affected by the virus or the Windows operating system.
• All the control aspects adopt intelligent PID control, control stability, high control precision, and have the parameter self-tuning control algorithm.
• With the functions of real-time display, data record, data analysis, graph and batch report, output print, password management and over limit alarm, etc.

Volume: 5~10000L (optional)
Load rate: 30%~70%
Contact material: SUS 316L stainless steel
Gassing: Four air intakes
Gas control: Standard: rotor flowmeter (manual)
Optional: mass flowmeter (automatic)
Sterilization: In-situ sterilization (steam source external)
Basic control: Temperature, rotating speed, pH, DO, pressure, feeds
Peristaltic pump: Standard 4 pcs
Stirring mode: Mechanical stirring / magnetic stirring
