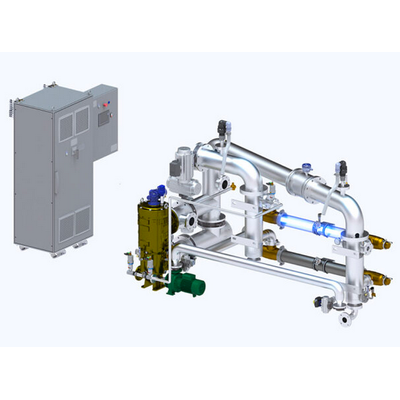

Biosea - Model B -Modular UV Ballast Water Treatment System
The BIO-SEA ‘B’-Series offers ship operators with a flow rate requirement of between 100 and 500 m3/h the ideal compromise between cost, performance and reliability. With a standard BIO-SEA ‘B’ design of one lamp per reactor, effective treatment is achieved with a substantially lower amount of lamps, resulting in more cost-effective, simpler installation and maintenance. This system is suitable for small and mid-size sargo / containerships, cruise vessel, RO-RO, etc.
Most popular related searches
ballast water
UV ballast water treatment
ballast water treatment system
ultraviolet water
water flow rate
water flow rating
UV ballast water
water treatment system
ballast water treatment
ultraviolet lamp
- Compatible with ballast water flow rates between 50 and 2000m³/h
- Titanium reactor designed with a single polychromatic, medium pressure, high-intensity UV lamp for optimum cost-efficiency and performance
- UV dosage automatically controlled according to water quality/turbidity
- Safe: no chemicals, no by-products, no active substances
- System performance unaffected by variations in water temperature or salinity
- Stand-alone operation, user-friendly interface
- Compact unit with minimal mounting height
- Easy to install, use and maintain
- Cost-effective, low OPEX
- Proven performance in low UV water transmission conditions
- High grade quality materials and components
- Treatment Capacity: from 50 to 2000m3/h
- Power Supply: 400-440 V; 50-60 Hz; 3-phases
- Power Consumption per reactor: 12 kW – 22 kW
- UV Lamp Lifetime: 5000 hours
- Environmental Operating Conditions: T° = 0°C – 55°C; H% < 95
- Global Head Loss: < 0.55 bars
- Operating Pressure: 1.5-10 bars
