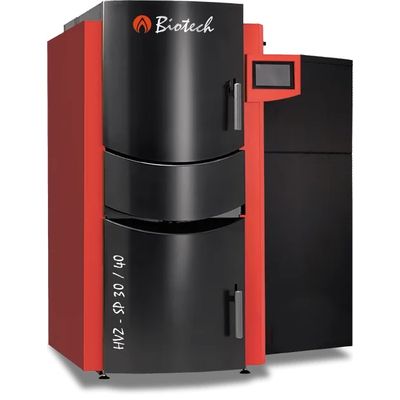

Biotech - Model HVZ-SP -Combination Boiler

SHARE

The c from Biotech combines the practical advantages of pellet boilers with inexpensive log wood as the main fuel. Two separate combustion chambers, automatic ignition by the pellets and other extras characterize these modern boilers.

Most popular related searches
sensor system
noise insulation
temperature sensor
pelletizer
pelletizing
automatic pelletizing
flame sensor
air separator
combustion performance
air separation
Power range 25-40 kW
  • Combination boiler for pellets and logs
  • 2 independent combustion chambers
  • Fully automatic ignition
  • Lambda probe & flame temperature sensor
  • Automatic heat exchanger cleaning
  • Combustion chambers made of refractory concrete
  • Pellet tipping grate and log grate made of cast stainless steel
  • Large filling space for logs
  • Filling space sheet thickness up to 8 mm
  • Automatic mode selection (pellets or logs)
  • Door contact switch
  • Primary & secondary air supply via separate flaps
  • 2 mixed heating circuits including sensors
  • Boiler & buffer management including sensors
The unique principle of combined firing of pellets and logs with two combustion chambers and two sensor systems for both types of fuel in one device. A noise-insulated conveyor turbine transports the pellets to the combustion chamber, where they are automatically ignited. For filling with logs, the HVZ-SP offers a large filling chute for logs up to 1/2 m in length. The perfect, low-smoke ignition using the powerful Pellets Power Start then ignites the logs from below and ensures exceptionally rapid formation of embers.

The result of two sensor systems is a very clean combustion. Only the principle with the 2 combustion chambers and the dual sensor system in connection with an intelligent control guarantees the advantageil a highly efficient combustion quality for both types of fuel - also in the so-called heating-up and transition phases. Overall, this means better emission values and lower fuel consumption with fully automatic operation without manual intervention. The triple burn-back protection protects the pellet store from a fire caused by declining, hot gases or even flames.

Minimum clearances masonry

1: 850 mm
2: 450 mm
3: 0-100 mm
4: 500 mm
