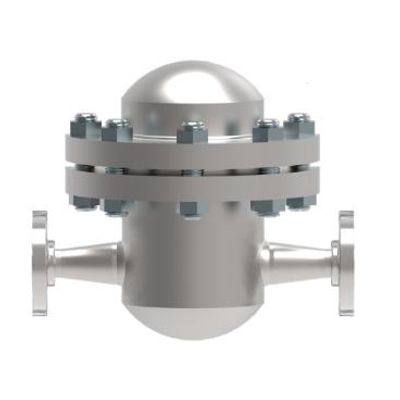

The number of bimetallic regulators depends on the application. The behaviour is like several steam traps in parallel, inside the same body. This fact increases unlimitedly its reliability and reduces maintenance and installation costs.
It is the ideal steam trap to guarantee a safety operation completely free of failures because it is unlikely that all regulators fail at the same time. The condensate temperature can be adjusted for each application.
The condensate discharge is controlled by bimetallic thermostats, continuously adjusting their regulators to changes of condensate flow. Automatic air venting. Installation in horizontal position.
The steam trap is able to adjust itself to changing conditions of condensate flow. The condensate pressure opens the valve of each bimetallic regulator allowing the discharge of condensate. During the discharge, the temperature of the condensate increases expanding the bimetals producing the progressive closure of each valve. So there is a balance between pressure and temperature handling the steam trap operation.
