Bitron - Appliance - Water Tank Level Capacitive Sensor
Technical Features: Microcontroller based , up to 3 sensing pad (min, max, proportional). Digital or analog output.
Tank with Water/Liquid: coffee machines, (de-)humidifiers, dryers
Adjustable sensitivity and signal conditioning via microcontroller.

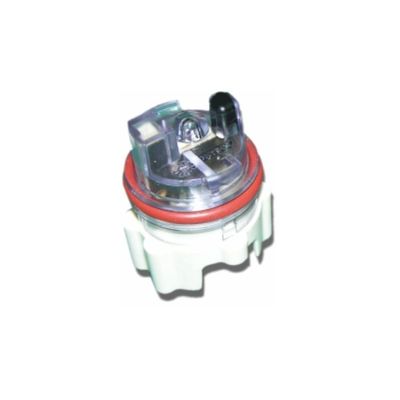

Description: OWI, The optical water quality sensor, measures the water temperature, the contamination and the presence of the foam. It is located at the bottom of the dishwasher tub and it sends electrical signals to the main controller. This device helps the optimisation of water usage, the quantity of the detergent used and presence of foam.
1. Selected IR LED`s-Phototransistor
2. Temperature measurement
3. Optical foam detection (patented)
4. Flame treatment on optical surface
5. 6-way RAST2.5 connector interface
The Bitron Pressure Sensor uses a Collpitts oscillator and a microprocessor to produce a frequency output signal proportional to the pressure in a pneumatic chamber.
