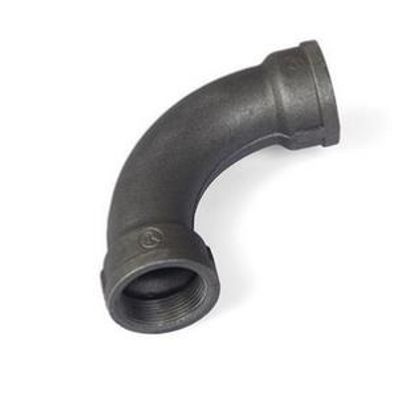

Jianzhi - Model BSP - Fig. 2 -Black Malleable Iron 90 Degree Bend Elbow
Everyone knows that fittings are a necessary part when assembling any plumbing system. Having made a high-quality repair once, choosing high-quality parts, you will forget about water supply problems for many years.Despite the fact that the use of cast iron communications is a thing of the past, cast iron fittings are still widely used in pipeline construction. Their enduring popularity is due to the long service life of 60 to 80 years, and the high strength of the material.
Most popular related searches

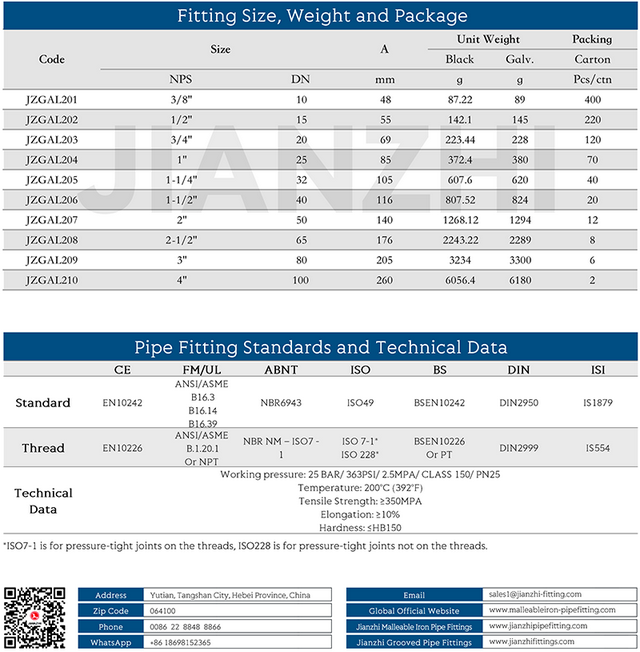

- Size: 1/8``-6``(DN6-DN150)
- Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
- Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
- Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
- UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Product Description
- Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
- Maximum Temperature: 200°C (392°F)
- Tensile Strength: 350MPA
- Hardness: HB150 (Brinell)
- Elongation Rate: 10%
- Suitable Applications: Water, Oil, Gas, Petro-Chemical
- Material: Malleable Iron
