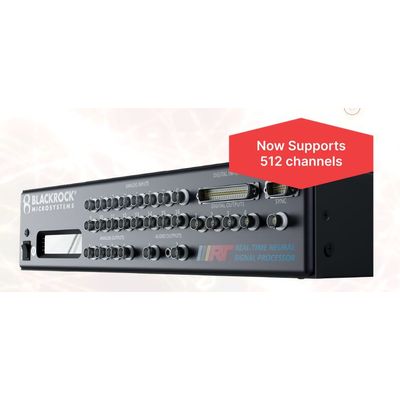

Blackrock - Model NeuroPort -Neural Signal Processor
The NeuroPort™ Neural Signal Processor is a highly-configurable, easy to use, multichannel data acquisition system. It gives researchers the power and flexibility to implement real-time control strategies for restoring function. The NeuroPort has become the industry standard for brain-computer interface recording and stimulation in humans since 2004.
The Neuroport Data System at a Glance
- FDA Cleared & CE Marked
- Real-Time Deterministic Closed Loop
- Published in more than 1000 peer-reviewed articles
- Record Up to 512 Channels
- High Sampling Rate
- 16-bit ADC, 30 kS/s
Dimensions: 17" x 12.5" x 3.5"
Sample Frequency: 30 kS/s
Channel Count: Channel Options: 32, 64, 96, 128, 256, 512
Output Connectors: Ethernet, 4x Analog BNC, 2x Audio BNC, 1x Audio 3.5mm, 4x Digital BNC, 1x Clock BNC,
Analog Input: 16x ±5V BNC input digitized with 16 Bits sampled at 30 Ks/s
Digital Input: 16 Bit TTL input sampled at 30Ks/s with strobe feature, 1x RS 232 Serial Input
